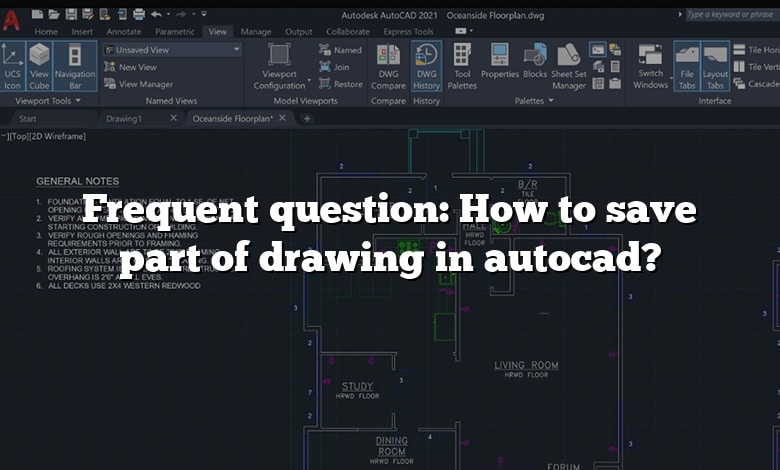

Frequent question: How to save part of drawing in autocad?

Frequent question: How to save part of drawing in autocad? , this article will give you all the information you need for this question. Learning AutoCAD may seem more complicated than expected, but with our multiple free AutoCAD tutorialss, learning will be much easier. Our CAD-Elearning.com site has several articles on the different questions you may have about this software.
AutoCAD can be considered as one of the most popular CAD programs. Therefore, companies and industries use it almost everywhere. Therefore, the skills of this CAD software are very advantageous and in demand due to the highly competitive nature of the design, engineering and architectural markets.
And here is the answer to your Frequent question: How to save part of drawing in autocad? question, read on.

Introduction

1. On [File] menu, click [Export] – [Export to DXF File] / [Export to DWG File]. [Export] dialog box will be displayed.
2. Select a saving location.
3. Enter a file name in [File Name] box.
4. Click [Save] button. The drawing created in RootPro CAD will be saved as an AutoCAD drawing file.

As many you asked, how do I save only part of an AutoCAD drawing? Select Tools and then Options from the upper-right menu. Click the DXF Options tab in the Save As dialog box. Select the Select Objects check box and click OK. In the Save Drawing As dialog box, enter a name and location for the file, and then click Save.

Quick Answer, how do you clip part of a CAD drawing?

Moreover, how do I export a selection in AutoCAD? Step 1: Select CAD drawing on the Module Navigation Bar. Step 2: Click Export Selection on the drawing toolbar or under CAD Identification on the menu bar. Step 3: Drag-select the part of a drawing to export, which is shown in blue, and right click, then the window below appears.

Subsequently, can I export selected area on AutoCAD as PDF? In order to export multiple AutoCAD layouts to PDF, first you need to select them. Hold down the CTRL key and click on all layout tabs you want to be exported. If you do it like this, you will have the option of exporting those drawings either as separate PDFs or within one single PDF file.You can create your own blocks using the AutoCAD Write Block (WBLOCK) command. You can think of WBLOCK as a way of isolating a block from a drawing and exporting it to its own . dwg file. Our plugins automate the WBLOCK process with the Save Block tool.

How do you cut a section out of AutoCAD?

1. Click Home tab Modify panel Trim. Find.
2. Select the objects to serve as cutting edges. Press Enter when you finish selecting the cutting edges.
3. Select the objects to trim and press Enter a second time when you finish selecting the objects to trim.

How do you cut an object in AutoCAD?

How do I use the clipping tool in AutoCAD?

How do I save an image from AutoCAD?

1. Click File Save/Save As. You are prompted to save each image that has changes, and then you are prompted to save the drawing.
2. Click Raster menu Save.
3. Click Raster menu Save As.
4. Click Raster menu Capture.
5. Click Raster menu Image Embed.
6. Click Raster menu Export Image.

How do I export an image from AutoCAD?

1. At the Command prompt, enter JPGOUT.
2. In the Create Raster File dialog box, select a folder and enter a file name. Click Save. The . jpg extension is appended to the file name.
3. Select the objects you want to save.

How do I save an AutoCAD drawing as a JPEG?

1. Type JPGOUT in the Command line and press Enter.
2. In the Create Raster File dialog box, use the Save in menu to navigate to the folder where you want to save the JPEG file.

How do I convert AutoCAD to Word?

1. In AutoCAD, select the objects that you want to insert into a Word document.
2. Press Ctrl+C.
3. In Word, click Home tab > Clipboard panel > Paste drop-down list > Paste Special.
4. In the Paste Special dialog box, click AutoCAD Drawing Object and click OK.

How can I crop a PDF?

1. Open the PDF in Acrobat.
2. Select the “Edit PDF” tool:
3. In the secondary toolbar, click “Crop Pages.”
4. Drag a rectangle on the page you want to crop.
5. Double-click inside the cropping rectangle.
6. Apply these settings to additional pages, set the page range, or click “All” under Page Range.

What is difference between Block and Wblock in AutoCAD?

A BLOCK is held only in the library of the current drawing file and can contain any kind or number of elements including other blocks. There is no such element as a WBLOCK. WBLOCK is a command that creates a separate DWG file. That file can contain any kind or number of elements including other blocks.

How do you save a Wblock in AutoCAD?

1. On the command line, enter wblock.
2. In the Write Block dialog box, under Source, click Entire Drawing.
3. Under Destination, in the File Name box, enter the file name for the WBLOCK.
4. In the Location box, enter the save location for the WBLOCK (new drawing file).
5. Click OK to create the new drawing file.

How do I insert a Wblock in AutoCAD?

Confirm that the wblock just created is saved. 23) Run the Insert command: {AC Module} → [Insert] → or Type the command insert at the command line or {Any CS Module} → [Draw] → 24) In the “Insert” window that appears, browse to the file of the wblock that you want.

How do I cut out an outside boundary in AutoCAD?

1. Open a drawing and attach the maps you want.
2. Define and execute a query to retrieve the objects to trim.
3. Click Tools tab Map Edit panel Boundary Trim.
4. In the Trim Objects At Boundary dialog box, under Boundary, select how to specify the boundary.

How do you cut everything outside of a box in AutoCAD?

1. select everything inside your rectangle then escape.
2. erase>> all>> remove items previous.
3. trim with a fence everything else outside your rectangle.

How do you xref only part of a drawing?

1. Click Insert tab Reference panel Clip .
2. Select a reference.
3. At the prompt, select New Boundary by pressing Enter.
4. Select a rectangular or polygonal clipping boundary, and then specify the corners or vertices of the boundary.

Can I clip a block in AutoCAD?

To clip a block, start the XCLIP command by entering it at the command line or selecting Xref from the Modify menu > Clip. Select the block and follow the prompts to create a new boundary that should be used to clip the block. This is how the SUPERHATCH command that is part of Express Tools works.

Final Words:

Everything you needed to know about Frequent question: How to save part of drawing in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.

The article clarifies the following points:

• How do you cut an object in AutoCAD?
• How do I save an image from AutoCAD?
• How do I export an image from AutoCAD?
• How do I save an AutoCAD drawing as a JPEG?
• How do I convert AutoCAD to Word?
• What is difference between Block and Wblock in AutoCAD?
• How do I cut out an outside boundary in AutoCAD?
• How do you cut everything outside of a box in AutoCAD?
• How do you xref only part of a drawing?
• Can I clip a block in AutoCAD?
