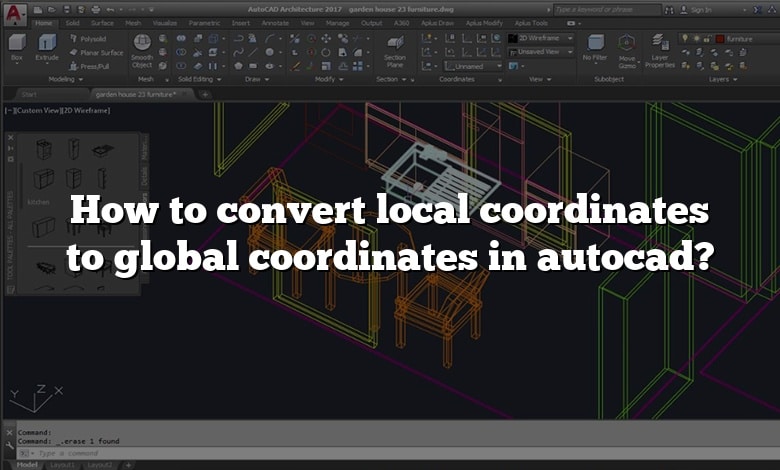

How to convert local coordinates to global coordinates in autocad? , this article will give you all the information you need for this question. Learning AutoCAD may seem more complicated than expected, but with our multiple free AutoCAD tutorialss, learning will be much easier. Our CAD-Elearning.com site has several articles on the different questions you may have about this software.
AutoCAD can be considered as one of the most popular CAD programs. Therefore, companies and industries use it almost everywhere. Therefore, the skills of this CAD software are very advantageous and in demand due to the highly competitive nature of the design, engineering and architectural markets.
And here is the answer to your How to convert local coordinates to global coordinates in autocad? question, read on.
Introduction
- Assign a desired Coordinate System to your Map. Open a new drawing. Click Map > Tools > Assign Global Coordinate System.
- Connect to the Data. In Display Manager, click Data > Connect To Data.
- Performing a Coordinate Transformation.
Similarly, how do you convert local coordinate to global coordinate?
- gCoord = 3×2 0 1 1 1 0 1.
- lclCoord = global2localcoord(gCoord,”rr”,lclOrig,lclAxes)
- lclCoord = 3×2 -3.9327 7.7782 -2.1213 -3.6822 -1.0168 1.7151.
- gCoord1 = local2globalcoord(lclCoord,”rr”,lclOrig,lclAxes)
- gCoord1 = 3×2 -0.0000 1.0000 1.0000 1.0000 0 1.0000.
Additionally, how do I get UTM Coordinates in AutoCAD?
- Click Geolocation tab Location panel Edit Location drop-down From Map. Find.
- In the Geographic Location dialog box, click Next.
- From the GIS Coordinate System list, select the desired coordinate system.
- Click Continue.
- Press ENTER until you exit the command.
Also, how do you change UCS to World in AutoCAD?
- Use the UCS command and select World.
- On the View tab of the Ribbon, go to the Coordinates panel and select World from the drop-down menu.
- Under the ViewCube expand the coordinate system drop down and select WCS.
- On the command line in AutoCAD, type PLAN and then World.
Also the question is, how do you convert coordinates?
- Step 1: Degrees × 60 = 71 × 60 = 4260.
- Step 2: 4260 + 5.745 = 4265.745.
- Step 3: The Longitude is “W” so the answer is -4265.745.
- Step 4: Suppose the Longitude Reference Location converted to Minutes is -4267.523. Then the answer is.
To convert back and forth from various coordinate systems (UTM to/from geographic coordinates i.e. latitude-longitude, Arc 1960 to/from WGS 84), you can use a GIS program like ArcGIS or Quantum GIS, a specialized conversion program such as Franson CoordTrans, or various online conversion tools.
How do I change the coordinate system in AutoCAD?
To show the panel, click the View tab then, right-click to the side of the available panels and click Show Panels > Coordinates. The Coordinates panel will be displayed. To set the coordinate system to World from the Ribbon Home tab > UCS panel, click the World button.
How do I convert DLTM to UTM?
How do I export coordinates in AutoCAD?
Use the DATAEXTRACTION command to extract geometric data from objects in an AutoCAD drawing to a table or to an external file. Note: It is also possible to utilise AutoLISP programming (not available in AutoCAD LT) to speed up the extraction.
What is the difference of user coordinate system and world coordinate system in AutoCAD?
The coordinates of the world coordinate system(WCS) define the location of all objects and the standard views of AutoCAD drawings. However, WCS are permanent and invisible. It cannot be moved or rotated. AutoCAD provides a movable coordinate system called the user coordinate system(UCS).
How can I get my UCS back to normal?
“At the command line, type “UCS” then choose the “World” option. Next type “Plan” and choose “World”. Yes, I’ve tried that. The UCS resets itself to the World position where I’d like it to remain, then on changing views reverts to the other position.
What is WCS and UCS?
The WCS indicator does not represent the. origin; it indicates orientation. WCS Indicator. The User Coordinate System (UCS) is the coordinate. system in which you are working.
What is the difference between conversion and transformation of coordinates?
In geodesy, geographic coordinate conversion is defined as translation among different coordinate formats or map projections all referenced to the same geodetic datum. A geographic coordinate transformation is a translation among different geodetic datums.
How do you find UTM coordinates?
Calculate the eastern boundary of any UTM zone by multiplying the zone number by 6 and subtracting 180. Subtract 6 degrees to obtain the western boundary. Therefore to find the eastern boundary of UTM zone 11: Eastern boundary of zone 11 = (11 * 6) – 180 = -114 degrees.
What is datum transformation?
A geographic datum transformation is a calculation used to convert between two geographic coordinate systems to ensure that data is properly aligned. Geographic coordinate systems describe how locations on the earth are placed on a hypothetical reference spheroid.
What defines Arc 1960 reference system?
Arc 1960 is a geodetic datum first defined in 1960 and is suitable for use in Kenya; Tanzania; Uganda.. Arc 1960 references the Clarke 1880 (RGS) ellipsoid and the Greenwich prime meridian. Arc 1960 origin is Fundamental point: Buffelsfontein. Latitude: 33°59’32.000″S, longitude: 25°30’44.622″E (of Greenwich).
What are the fundamental parameters of WGS 84?
Defining Parameters: WGS 84 identifies four defining parameters. These are the semi-major axis of the WGS 84 ellipsoid, the flattening factor of the Earth, the nominal mean angular velocity of the Earth, and the geocentric gravitational constant as specified below.
How do you convert coordinates into drawings?
How do you convert decimal to UTM?
Is WGS 84 the same as UTM?
The difference is that WGS 84 is a geographic coordinate system, and UTM is a projected coordinate system. Geographic coordinate systems are based on a spheroid and utilize angular units (degrees).
How do you convert Northing Easting coordinates to longitude and latitude?
Subtract the easting and northing by their respective offset values. (The values will be in meters.) Find the longitude of the given point by finding the destination point given the base point, the absolute value of the easting, and the bearing of 90 degrees if the easting is positive, or 270 degrees if it’s negative.
Wrap Up:
Everything you needed to know about How to convert local coordinates to global coordinates in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.
The article clarifies the following points:
- How do I change the coordinate system in AutoCAD?
- How do I convert DLTM to UTM?
- How do I export coordinates in AutoCAD?
- What is the difference of user coordinate system and world coordinate system in AutoCAD?
- How can I get my UCS back to normal?
- How do you find UTM coordinates?
- What defines Arc 1960 reference system?
- How do you convert decimal to UTM?
- Is WGS 84 the same as UTM?
- How do you convert Northing Easting coordinates to longitude and latitude?
