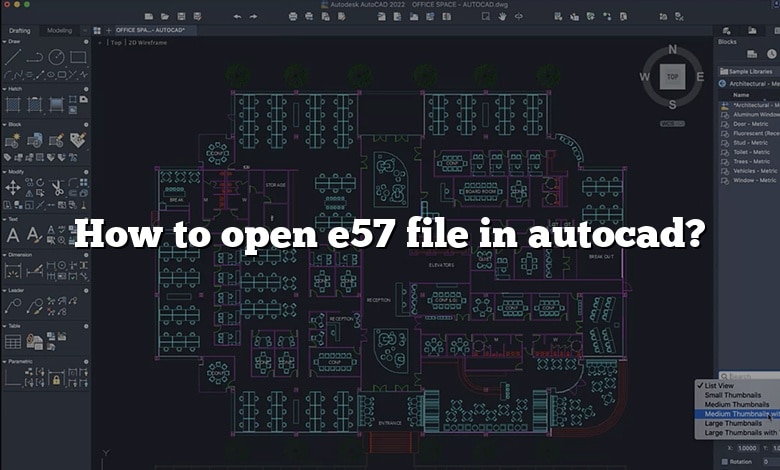

How to open e57 file in autocad?

With this article you will have the answer to your How to open e57 file in autocad? question. Indeed AutoCAD is even easier if you have access to the free AutoCAD tutorials and the answers to questions like. Our CAD-Elearning.com site contains all the articles that will help you progress in the study of this wonderful software. Browse through our site and you will find different articles answering your different questions.
The use of parametric design in AutoCAD makes it a powerful tool for designers and engineers. The designer can observe the impact of adjustments on neighboring components or even on the entire solution. This makes it quick and easy for designers to identify and solve problems.
And here is the answer to your How to open e57 file in autocad? question, read on.

Introduction

Import the . e57 file into Autodesk ReCap to progress and convert the file to an . RCP file.
Use the . RCP file to import the Point Cloud into AutoCAD.

Correspondingly, how do I open an E57 file?

FARO Scene.
RIEGL RiSCAN PRO.
libE57.

Additionally, how do I import an RCS file into AutoCAD?

In AutoCAD, under Insert>Attach.
Choose the .rcs file.
Keep to these settings. Uncheck insertion point and scale.
Done. 🙂
Repeat Step 1. Insert>Attach.
Ensure you’ve chosen a DWG.
Uncheck scale and insertion point. This ensures your file is at Origin to Origin.
Done. 🙂

As many you asked, what is E57 file format? The E57 file format is a compact, vendor-neutral format for storing point clouds, images, and metadata produced by 3D imaging systems, such as laser scanners. The file format is specified by the ASTM, an international standards organization, and it is documented in the ASTM E2807 standard.

Frequent question, how do I import a ReCap file into AutoCAD?

Full name. LAS (LASer) File Format, Version 1.4. Description. LAS is a file format for the interchange of 3-dimensional point cloud data. Although developed primarily for exchange of lidar point cloud data, this format supports the exchange of any 3-dimensional x,y,z tuplet data.

How do I import an E57 file into Revit?

Convert the . e57 to a . rcp and then attach it to your Revit model. Please Accept as Solution and give Kudos as appropriate to further enhance these forums.

Can AutoCAD open RCS?

In actuality, AutoCAD only supports two file formats, namely . rcs & . rcp. This is because AutoCAD ReCap does all the point cloud (de)modulation.

How do I open an RCS file?

If you cannot open your RCS file correctly, try to right-click or long-press the file. Then click “Open with” and choose an application. You can also display a RCS file directly in the browser: Just drag the file onto this browser window and drop it.

What is RCS file format?

3D scene file used by RandomControl software products such as fryrender and Arion; stores a scene exported from a 3D modeling software application (that has the fryrender or Arion plugin); used for storing the scene in a format that can be submitted to the rendering engine.

What is the purpose of point cloud?

As the output of 3D scanning processes, point clouds are used for many purposes, including to create 3D CAD models for manufactured parts, for metrology and quality inspection, and for a multitude of visualization, animation, rendering and mass customization applications.

What is PTX file?

PTX is an ASCII based format for saving point cloud data, typically from LIDAR scanners. Conceptually, information about each 3D point is saved as 4 or 7 values (depending on whether color information is stored or not).

How do I open a RCP file in Revit?

Click Yes to have Revit create indexed (.
If one or more text files (.
Under File Locations:
Click Start Indexing.

How do I open Las recap?

Open Recap 360, and select the Import option from the top menu:
Click your preferred import option, either individual files or a . las folder, then select the files/folder:
Click import files:
Click index scans:
Click launch project:
The LAS file is converted to an .

How do I open a RCP file in recap?

RCP file types. The support folder needs to be in the same folder as the RCP file for it to be able to open correctly. By double clicking on the RCP file you will be asked if you want to open it in Autodesk Recap, click yes and you should now see the point cloud.

How do I import a recap file into Civil 3D?

Open the file in ReCap.
Save to either RCS or RCP.
Attach the saved point cloud in Civil 3D.

How do I open a LAS file?

Navigate to File > Open Data File(s)
Browse to and select the . las files you want to view.
The projection of the dataset should be detected and loaded in the Select Projection dialog box. Click OK.
The Lidar Load Options dialog box has multiple parameters.
The LAS files will load.

What software can open LAS files?

You need a suitable software like TerraScan to open a LAS file.

What program can open LAS files?

LASUtility.
ESRI ArcGIS Pro.
Safe Software FME Desktop.
Geosoft Oasis montaj.
Blue Marble Geographics Global Mapper.
Blaze3D.

How do I open point cloud data in Revit?

Go to the Insert or Manage tab and choose “Manage Links”.
Select the “Point Cloud” tab.
Select a point cloud in the list and choose “Reload From” on the lower left and select .

How do I export from Matterport to Revit?

Activate and use Autodesk Revit Plugin Connect to your Matterport account from Autodesk Revit™ using the Matterport plugin. Import the Matterport BIM File add-on asset into Revit: Find a space from your account’s available spaces. Select the space and your asset is imported into Revit.

Bottom line:

I believe I have covered everything there is to know about How to open e57 file in autocad? in this article. Please take the time to look through our CAD-Elearning.com site’s AutoCAD tutorials section if you have any additional queries about AutoCAD software. In any other case, don’t be hesitant to let me know in the comments section below or at the contact page.

The article provides clarification on the following points:

How do I import an E57 file into Revit?
Can AutoCAD open RCS?
What is PTX file?
How do I open a RCP file in Revit?
How do I open Las recap?
How do I open a RCP file in recap?
How do I import a recap file into Civil 3D?
How do I open a LAS file?
How do I open point cloud data in Revit?
How do I export from Matterport to Revit?
