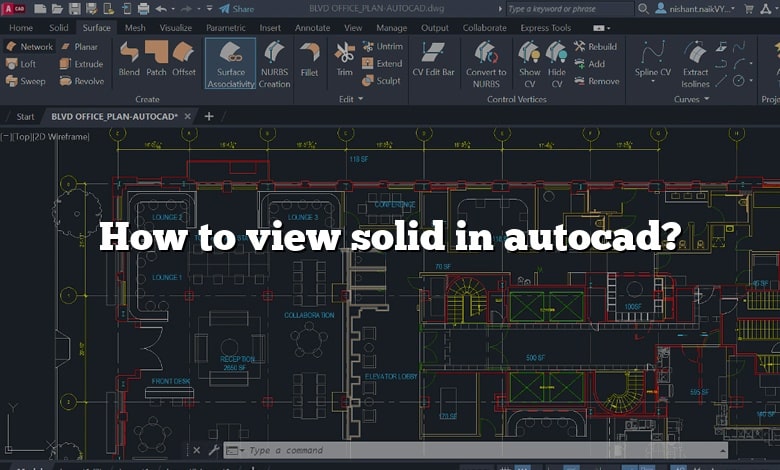

How to view solid in autocad?

How to view solid in autocad? – The answer is in this article! Finding the right AutoCAD tutorials and even more, for free, is not easy on the internet, that’s why our CAD-Elearning.com site was created to offer you the best answers to your questions about AutoCAD software.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs. It is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your How to view solid in autocad? question, read on.

Introduction

The Solid View tool creates orthographic viewsorthographic viewsThe projection of a vector on a plane is its orthogonal projection on that plane. The rejection of a vector from a plane is its orthogonal projection on a straight line which is orthogonal to that plane. Both are vectors. The first is parallel to the plane, the second is orthogonal.https://en.wikipedia.org › wiki › Vector_projectionVector projection – Wikipedia, layers, and layout viewports automatically for 3D solids. Click the Solid View tool. The program switches to a paper space layout and prompts you to enter an option. There are four options: UCS, Ortho, Auxiliary, and Section.

Best answer for this question, how do I view solid objects in AutoCAD? In the Options dialog box, Display tab, under Display Performance, click or clear Apply Solid Fill. To display your changes, click View menu Regen.

Considering this, how do I view 3D objects in AutoCAD? Click the ‘gear’ icon on the status bar and select “3D Basics”. When you are in the 3D Basics workspace, your tool palettes on the ribbon will change. This will make it easier to find tools and icons that you’ll use more often in 3D.

Also the question is, how do I change view in AutoCAD?

You asked, how do I create a solid tab in AutoCAD?

1. Open or start a new drawing in AutoCAD.
2. At the command prompt type Options.
3. In the Options dialog select the Profiles tab.
4. In the Profiles tab select <>.
5. Select Set Current.
6. Select Apply and Close.

1. Click Manage tab Style & Display panel Display Manager.
2. Expand Configurations.
3. Expand the current display configuration.
4. Select a display set in the current display configuration.
5. Click the Display Representation Control tab.

How do I view perspective in AutoCAD?

To turn on the perspective view, enter d (Distance). Enter a distance, or press Enter to set the perspective view. You can use the slider bar to set the distance between the selected objects and the camera, or you can enter a real number.

How do you view 3D drawings?

1. With a drawing view selected, click 3D Drawing View.
2. Use the tools on the pop-up toolbar to manipulate the drawing view as necessary.
3. To create a new view orientation, click Save the view or press the spacebar, then add a named view in the Orientation dialog box.
4. Click Exit.

How do I view isometric in AutoCAD?

Just click on the Isodraft icon on the Status Bar to toggle it on or off. Click the small down arrow just to its right to choose your isoplane mode. Whatever method you prefer, a few things will happen when enabled. First, your cursor will change from orthographic to the chosen isoplane.

How do I switch to 3D in AutoCAD?

How do I switch to classic view in AutoCAD?

1. Once AutoCAD is open, type “-TOOLBAR” in the command bar.
2. Then type “STANDARD” and hit Enter on the keyboard, (if you have any custom toolbars created by your company or a 3rd party, you can load these in here at this time).
3. Type “Show” and hit Enter on the keyboard again.

What is viewport AutoCAD?

Viewports allow you to create different views of the objects in your model space and display them on the printed page from different angles and at different scales.

How do I set AutoCAD 2020 to classic view?

1. Click Tools menu > Workspaces > Save Current As.
2. In the Save Workspace dialog box, in the Name box, type AutoCAD Classic.
3. Click Save.

How do I show the full ribbon in AutoCAD?

Solution: On the command line in AutoCAD, type: RIBBON to show/turn on the ribbon on. RIBBONCLOSE to hide/turn the ribbon off.

How do I get my ribbon back in AutoCAD?

The ribbon can be closed or turned off. To turn it back on, type RIBBON on the command line. Check to see if the view mode of the ribbon also needs to be adjusted. Click the cycle button to the right of the ribbon tab to cycle through the panel views.

How do I apply a texture in AutoCAD?

Just find your material from this browser and drag the material and drop it on the object on which you want to add. Alternatively, you can also select the object(s) first and then right click on the material you want to add from Materials Browser and then select Assign to Selection from right click context menu.

How do you hatch a 3D object in AutoCAD?

What do you mean by perspective view?

Perspective view is a two-dimensional representation of a three-dimensional space, where the apparent size of an object decreases as its distance from the viewer increases.

What is Section perspective?

The sectional perspective, or perspection, is the quintessential drawing of our time, simultaneously entering the realm of the object and showing rela- tions between interior and exterior, above and below, cavity and membrane.

What is 2point perspective?

Two-point perspective: Lines that converge on two vanishing points. Linear Perspective: A technique for representing three-dimensional space on a flat surface. Vanishing Point: The point in space where items seem to disappear. Vertical Lines: Straight lines drawn from top to bottom.

How do you create an isometric view?

Using the ruler, draw a vertical line on the page, and mark three equally spaced points along it. Draw a horizontal line through the lowest point, and using the protractor, mark out a 30 degree angle up from the line on either side. Draw a line back through the lowest point from the 30 degree angle on each side.

Wrapping Up:

I believe I covered everything there is to know about How to view solid in autocad? in this article. Please take the time to examine our CAD-Elearning.com site if you have any additional queries about AutoCAD software. You will find various AutoCAD tutorials. If not, please let me know in the remarks section below or via the contact page.

The article clarifies the following points:

• How do I view perspective in AutoCAD?
• How do you view 3D drawings?
• How do I switch to classic view in AutoCAD?
• What is viewport AutoCAD?
• How do I set AutoCAD 2020 to classic view?
• How do I get my ribbon back in AutoCAD?
• How do I apply a texture in AutoCAD?
• What is Section perspective?
• What is 2point perspective?
• How do you create an isometric view?
