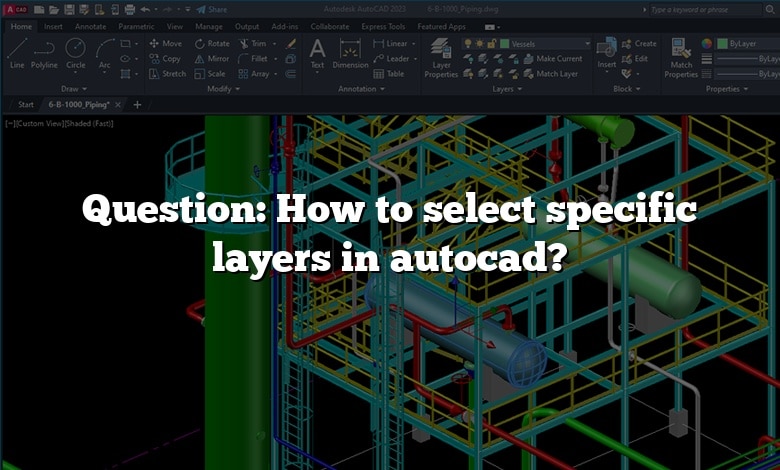

Question: How to select specific layers in autocad?

Starting with this article which is the answer to your question Question: How to select specific layers in autocad?.CAD-Elearning.com has what you want as free AutoCAD tutorials, yes, you can learn AutoCAD software faster and more efficiently here.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs and is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your Question: How to select specific layers in autocad? question, read on.

Introduction

Right-click the CAD drawing, point to CAD Drawing Object, and then click Properties. Click the Layer tab. Select the layer, and click the Visible field.

You asked, how do I select a layer in AutoCAD 2021?

1. Select the objects.
2. Right-click in the drawing area, and choose Properties from the shortcut menu.
3. In the Properties palette, click Layer, and then the down arrow.
4. From the drop-down list, choose the layer that you want to assign to the objects.
5. Press Esc to remove the selection.

Moreover, how do I select specific objects in AutoCAD? You can select object using a line or a fence. When prompted to select objects, type [F] for fence and simply draw a dashed line across objects you want to select. All crossed and touched objects will be selected. If you made a mistake and selected an object you don’t need, don’t cancel command and start over.

Also, how do you select everything on a layer? If you have a layer that contains many objects, you can put a selection around every object on that layer by holding the Command key (PC: Control key) and clicking on the Layer’s name in the Layers palette.

You asked, how do you isolate layers in AutoCAD? Press the CTRL key and then in the Layer Properties Manager, select those two layers. Then, right-click to display the shortcut menu and choose Isolate Selected Layers.You can control the visibility of objects on a layer by toggling the layer on/off or by using freeze/thaw. You can turn layers off and on as needed. Objects on layers turned off are invisible in the drawing. Freezing and thawing layers is similar to turning them off and on.

How do I manage layers in AutoCAD?

1. Create, rename, and delete layers.
2. Set and change layer properties.
3. Make a layer current.
4. Work with layer standards and layer key styles.
5. Create layer groups and layer filters.
6. Create layer overrides for layout viewports.

How do you quick select a layer in AutoCAD?

How do you quick select multiple layers in AutoCAD?

How would you select a set of objects in a drawing?

1. Enter the QSELECT command.
2. In the Quick Select dialog box, under Apply To, select Entire Drawing or the current selection set (if one exists).
3. Under Object Type, select a single object type if the objects you want are all one type.

How do I view just one layer in AutoCAD?

1. Click Home tab Layers panel Isolate. Find.
2. Select objects on each layer that you want to isolate, and press Enter. All other layers will be turned off.

How do you select multiple objects in AutoCAD?

Multiple objects can still be selected with selection or crossing windows, and by holding the Shift key while clicking items.

How do you isolate layers?

How do I isolate a layer in AutoCAD 2019?

1. Begin the LAYISO command.
2. Before you click anything look at the command line.
3. Select the “Settings” option.
4. By default the “Lock and fade” options is set.
5. Verify the “Off” setting is also set for the paper space viewport option.
6. Continue to use the command as you normally would.

How do I hide all layers except one in AutoCAD?

Hides or locks all layers except those of the selected objects. All layers except the layers of the selected objects are either turned off, frozen in the current layout viewport, or locked, depending on the current setting. The layers that remain visible and unlocked are called isolated.

What is used to control the layer?

You can use the Layer Properties Manager to control the visibility of objects and to assign default properties to objects on each layer.

How do I use Layer state manager in AutoCAD?

1. On the Layer Properties Manager, click Layer States Manager.
2. On the Layer States Manager, click New.
3. Enter a name for the layer state, for example Default, and click OK.
4. Click Close to return to the drawing.

Where is Layer properties Manager in AutoCAD?

Right-click on the desktop and choose Display Settings. Switch off all displays but the main one. The layer manager should appear.

How you can hide the specific layers when plotting in AutoCAD?

1. Click Home tab Layers panel Layer Properties. Find.
2. Select the layers you want to turn on or off.
3. Click the icon in the On column to set the status of the selected layers. = on. = off.

How do you select objects?

Tips for selecting shapes and objects Press and hold Shift or Ctrl while you select the objects. Select an object that is under other objects and cycle forward through the stack of objects. Select the top object, and then press Tab.

What is select command AutoCAD?

To use this selection option click anywhere in the drawing area then type F on the command line and press Enter. Your fence will start from the point of click, now move this fence to touch other objects in the drawing to make the selection.

Bottom line:

I believe I have covered everything there is to know about Question: How to select specific layers in autocad? in this article. Please take the time to look through our CAD-Elearning.com site’s AutoCAD tutorials section if you have any additional queries about AutoCAD software. In any other case, don’t be hesitant to let me know in the comments section below or at the contact page.
