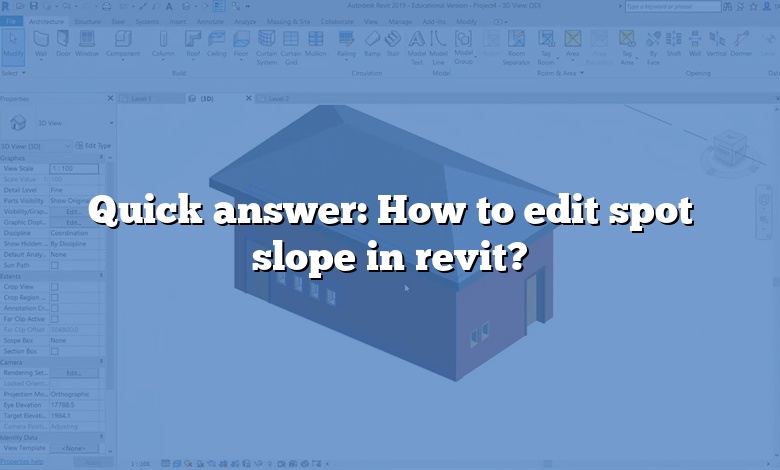

Quick answer: How to edit spot slope in revit?

1. Click Annotate tab Dimension panel (Spot Slope).
2. In the Type Selector, select the type of spot slope to place.
3. (Optional) Change the following on the Options Bar:
4. Click the edge or slope where you will place the spot slope.
5. Click to place the spot slope, either above or below the slope.

Similarly, how do you change the slope of a ramp in Revit?

1. Open a plan view or a 3D view that displays the ramp.
2. Select the ramp, and click Modify | Ramps tab Mode panel Edit Sketch.

As many you asked, how do you add a custom slope in Revit?

Amazingly, what is spot slope in Revit? A spot slope displays the slope at a specific point on a face or an edge of a model element. You can place spot slopes in plan views, elevation views, and section views.

Correspondingly, how do you dimension and slope in Revit?

1. Click on the Spot Elevation tool from the Dimension panel in the Annotate tab of the Ribbon.
2. Click at the required location on the wall.
3. Click on the desired side of the wall.
4. Select the Spot Slope Dimension and in the Properties Palette add a Prefix or Suffix to the dimension text as shown.

1. Open a plan view or a 3D view that displays the ramp.
2. Select the ramp, and click Modify | Ramps tab Mode panel Edit Sketch.

How do you make a sloped floor in Revit?

How do you use slope arrows in Revit?

Click Modify | Create/Edit Boundary Draw tab (Slope Arrow). Draw the slope arrow in the drawing area: click once to specify its start point (tail); click again to specify its endpoint (head). The slope arrow must start on an existing sketch line. For more examples and tips, see About Slope Arrows.

How do you make a single slope roof in Revit?

How do I add a ramp arrow in Revit?

How do you annotate a slope in Revit?

How do you make a curved ramp in Revit?

How do you change measurements in Revit?

1. Click Manage tab Settings panel.
2. In the Project Units dialog, select the discipline.
3. Select the value in the Format column to change the display value for that unit type.
4. Specify Units, if necessary.
5. For Rounding, select an appropriate value.

How do I change dimension in Revit?

1. Click Annotate tab Dimension panel drop-down, and select one of the options.
2. In the Type Properties dialog, select the dimension type you want to work with from the Type list.
3. If desired, click Rename to rename the type, or click Duplicate to create a new dimension type.

How do you change dimensions in Revit?

1. Select an element that the dimension references.
2. Click the dimension value. If the dimension is locked, the lock control appears next to it.
3. In the edit box, type a new value for the dimension, and press Enter . The element moves to satisfy the new dimension requirement.

How do I create a custom ramp in Revit?

How do you use a ramp tool in Revit?

1. Open a plan or 3D view.
2. Click Architecture tab Circulation panel (Ramp).
3. (Optional) To select a different work plane, click Work Plane panel Set on the Architecture tab, the Structure tab, or the Systems tab.
4. Click Modify | Create Ramp Sketch tab Draw panel, and select either (Line) or (Center-ends Arc).

What is slope of ramp?

Bottom line: recommended ramp slope: The preferred slope for a building access ramp is 1:12 or 1 inch of rise per 12 inches of horizontal run – that’s roughly an 8% slope also written as a 4.8 degree angle slope.

How do you change the slope of a floor?

1. If you are not already in sketch mode, select the floor in plan view, and click Modify Floors tab → Edit panel → Edit Boundary.
2. Click Modify Floors > Edit Boundary tab → Draw panel → Slope Arrow.
3. Sketch the slope arrow on the floor.
4. Select the slope arrow after drawing it.

How do I edit sub elements in Revit?

1. Select the floor or roof to modify.
2. Click Modify | Floors tab Shape Editing panel Modify Sub Elements.
3. Drag a point or edge to modify the location or elevation.
4. Click the text control to enter a precise height value for the selected point or edge.

How do you slope a floor for a drain?

Recommendation: The standard recommendation for sloping ”drainage” floor surface is to provide a nominal 2% slope from the corner of each drain area in order for water to drain freely with minimal assistance.

How do you add a slope arrow to a roof in Revit?

Click Modify | Create Roof Footprint tab Draw panel (Slope Arrow). On the Properties palette, select New from the filter list. Under Constraints, for Specify, select Slope. Under Dimensions, for Slope, enter 9″ (or the metric equivalent).

How do you change the slope of a roof?

Changing the pitch of a roof is only possible when a roof’s internal and structural materials are also replaced. When a roof’s ridges, walls and rafters are switched out, there is a chance to create a new architectural design that can change the pitch of the roof.

How do you make a low slope roof in Revit?

How do you make a sloped roof in Revit 2020?

How do you show a ramp on a floor plan?

1. Click Manage tab Style & Display panel Display Manager.
2. Expand Representation by Object, and scroll to the Stair object.
3. Expand Stair, and select the appropriate Plan display representation.
4. Click the Other tab.
5. Under Stair Line, select Display Ramp Arrows.
