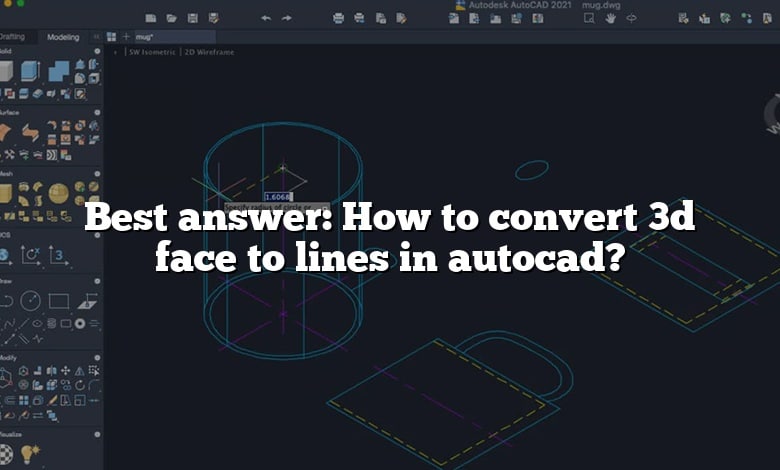

Best answer: How to convert 3d face to lines in autocad?

Best answer: How to convert 3d face to lines in autocad? , this article will give you all the information you need for this question. Learning AutoCAD may seem more complicated than expected, but with our multiple free AutoCAD tutorialss, learning will be much easier. Our CAD-Elearning.com site has several articles on the different questions you may have about this software.
AutoCAD can be considered as one of the most popular CAD programs. Therefore, companies and industries use it almost everywhere. Therefore, the skills of this CAD software are very advantageous and in demand due to the highly competitive nature of the design, engineering and architectural markets.
And here is the answer to your Best answer: How to convert 3d face to lines in autocad? question, read on.

Introduction

Use the Convert to Surface command (CONVTOSSURFACE) to convert the 3D faces into surfaces. Use the UNION command to join the surfaces together. Use the Smooth Object command (MESHSMOOTH) to create a mesh from the resulting surface. To retain the original shape, set the mesh smoothness to None in the properties palette.

Beside above, how do you explode a 3D face in Autocad? CAD tip # 13038: You can explode a 3D object consisting of 3D faces (3DFACE entities) into the individual 3D outlines of triangles or quadrilaterals using the LISP utility 3DF2L. Download the . LSP file from the Download section, load it using APPLOAD and type the 3DF2L command. Select the 3D and Polyline modes.

Correspondingly, how do you make a 3D face into a solid?

1. Enter CONVTOSURFACE on the command line.
2. Select the face that you want to convert.
3. Enter THICKEN on the command line.
4. Select the surface.
5. Enter a thickness value for the selected surface on the command line.
6. When prompted, choose whether or not to erase the defining surface.

Furthermore, how do you convert a 3D solid to a polyline in Autocad?

Additionally, can you make a surface from 3D polylines? If this is the case Civil 3D has tools that make creating a surface from 3D faces or 3D lines representing a TIN both accurate and easy. On the Prospector tab of the Toolspace, right-click on Surfaces and select >> Create Surface.

How do you export 3D faces in Civil 3D?

Make sure your TIN triangles are turned on in your style. Then go to Surface->Utilities->Extract objects from surface, and select “Triangles” in the dialog box. This will create 3D-Faces from your TIN triangles.

How do I change a 3D surface to a solid in Autocad?

1. Click Surface tab Edit panel Sculpt. Find.
2. Select one or more surfaces that completely enclose a volume. There must be no gaps between the surfaces. A 3D solid object is created.

How do you make a 3D object solid in Autocad?

1. If necessary, on the status bar click Workspace Switching and select 3D Modeling. Find.
2. Click Solid tab > Solid panel > Extrude. Find.
3. Select the objects or edge subobjects to extrude.
4. Specify the height.

How do you turn an object into a solid in Autocad?

1. Click Mesh tab Convert Mesh panel Convert Options drop-down.
2. Specify one of the following conversion options: Smooth, optimized.
3. Click Mesh Modeling tab Convert Mesh panel Convert to Solid.
4. Select a mesh object that has no gaps or intersecting faces.

How do you convert 3D polyline to 2D?

1. Click Modify tab Design panel Convert 3D To 2D Polylines Find.
2. Select the polyline(s) to convert. Press Enter.

How do I convert 3D Autocad to 2D?

How convert 3D polyline to 2D polyline in Autocad LT?

If you want to just cut-off the Z-coordinates of a 3D polyline (make it appear 2D), use the FLATTEN command ( Express Tools ) to zero all Z-coordinates. The FLATSHOT command converts the whole view into a 2D drawing.

How do you convert a 3d polyline to a feature line?

How do I convert polylines to surface?

How do I add a 3d polyline to my surface?

To begin adding polylines to this surface, start by turning on the 2′ contours layer in the drawing. Next in the Prospector, expand the surface collection and the EG surface and finally expand the definition of the surface.

How do I export a Civil 3D drawing to AutoCAD?

At the command line, enter UCS, and then enter World. At the command line, enter Options to display the Options dialog box. Click the AEC Editor tab, specify the Export To AutoCAD settings, and then click OK. At the command line, enter ExportToAutoCAD.

How do I export a 3D model from Civil 3D?

1. Click Manage Model.
2. In the Model Explorer panel, make the desired layers visible.
3. Zoom out to see the area to export.
4. Click Present/Share Present.
5. In the Export to 3D Model File dialog box, specify the area to export:

How do I export a surface from Civil 3D to AutoCAD?

1. Set up your drawing so that all objects that you want to export are visible.
2. Click Output tab Export panel Export Civil 3D Drawing Find.
3. In the Export Autodesk Civil 3D Drawing dialog box, select AutoCAD DWG in the Export To File Type field.

How do you turn a surface into a solid?

How do I fill in surfaces in Autocad?

1. Click Home tab Draw panel Hatch.
2. On the Properties panel Hatch Type list, select the type of hatch you want to use.
3. On the Pattern panel, click a hatch pattern or fill.
4. On the Boundaries panel, specify the how the pattern boundary is selected:
5. Click an area or object to be hatched.

Bottom line:

Everything you needed to know about Best answer: How to convert 3d face to lines in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.
