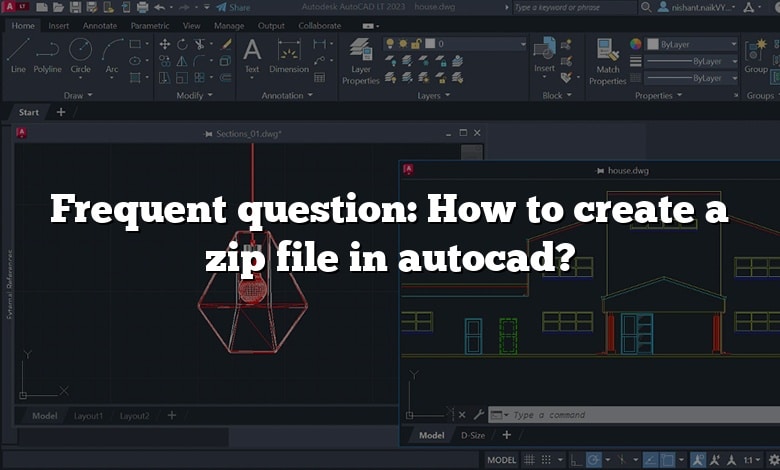

Frequent question: How to create a zip file in autocad?

The objective of the CAD-Elearning.com site is to allow you to have all the answers including the question of Frequent question: How to create a zip file in autocad?, and this, thanks to the AutoCAD tutorials offered free. The use of a software like AutoCAD must be easy and accessible to all.
AutoCAD is one of the most popular CAD applications used in companies around the world. This CAD software continues to be a popular and valued CAD alternative; many consider it the industry standard all-purpose engineering tool.
And here is the answer to your Frequent question: How to create a zip file in autocad? question, read on.

Introduction

1. To select dwg file(s), you have two options:
2. (Optional) Set the desired compression level by clicking the down arrow next to “Convert to dwg”.
3. Click “Convert to ZIP” to initiate the conversion.

Best answer for this question, how do I package an AutoCAD drawing?

1. In AutoCAD, on the Quick Access Toolbar (QAT), click Open.
2. Browse to C:Program FilesAutodeskAutoCAD SampleMechanical Sample and open Mechanical – Multileaders.
3. Click the Application menu > Publish > eTransmit.
4. In the Create Transmittal dialog box, click the Files Tree tab.

People ask also, how do I archive in AutoCAD? Click on the name of the sheet set and then right-click and choose the archive option. AutoCAD gathers the data and drawings used in the entire sheet set. An “Archive a Sheet Set” dialog box will open and you can uncheck drawings and files not needed for your archive.

Amazingly, how do I package an xref in AutoCAD?

1. Save the drawing.
2. Enter ETRANSMIT at the command line and hit enter.
3. On the Create Transmittal dialog check or uncheck the items you do not need or want to package up.
4. Click to edit the “Transmittal setups…”
5. Click Modify.

Also know, how do I email an AutoCAD drawing?

How do I reduce the size of an AutoCAD 3D file?

1. Export 3D solids to a SAT file using the ACISOUT command.
2. Delete all 3D solids and import them again using the ACISIN command.
3. If AutoCAD Mechanical is available, use STEPOUT and STEPIN instead (layer and colors are better preserved).

How can I send large DWG files?

If you work in a larger company, it’s usually best to share DWG files to a shared folder in your company network, or using cloud storage services like Drive and Dropbox. This way you can collaborate and work simultaneously by using file references.

What is an eTransmit file?

But selecting external files manually is a time consuming and error prone task, AutoCAD has a tool called eTransmit which makes this task very fast and easy. It creates a package of all drawing dependent elements in the form of a ZIP file or folders. To use eTransmit make sure you have saved your drawing.

How do I create a CAD file?

1. Open an existing drawing or create a new drawing.
2. Click Insert tab Block Definition panel Write Block.
3. In the Write Block dialog box, select Objects.
4. Click Select Objects.
5. Use your pointing device to select the objects to be included in the new drawing.

Where are CAD backup files saved?

The location of autosave files in the Windows operating system can be determined by going to the Files tab in the Options dialog box and inspecting the Automatic Save File Location folder in the hierarchy, or by using the SAVEFILEPATH variable. In the Mac OS, this can be found under the Application tab in Preferences.

How do you save a file in AutoCAD?

1. On [File] menu, click [Export] – [Export to DXF File] / [Export to DWG File]. [Export] dialog box will be displayed.
2. Select a saving location.
3. Enter a file name in [File Name] box.
4. Click [Save] button. The drawing created in RootPro CAD will be saved as an AutoCAD drawing file.

How do you send a sheet set in AutoCAD?

1. Close or save drawings. You must close or save any open sheet set drawings that have been edited.
2. Select sheets to include in the transmittal set. In the Sheet Set Manager (SSM), you can use the Shift and Ctrl keys to select a range or specific sheets.
3. Create a transmittal set.

How do I send xref files?

1. Click Insert tab Reference panel Dialog box launcher. Find.
2. In the External References palette, select the reference name that you want to bind.
3. Right-click, and click Bind.
4. In the Bind Xrefs dialog box, select one of the following options:
5. Click OK to close each dialog box.

How do I permanently attach an xref in AutoCAD?

1. Do one of the following to choose Xref Manager ( ): On the ribbon, choose Insert > Xref Manager (in Reference). On the menu, choose Insert > Xref Manager.
2. Select the external reference to bind.
3. Click Bind.
4. Choose one of the following: •
5. Click OK.

How do I bind multiple files in AutoCAD?

1-Go to file menu => eTransmitor type etransmit at the Command line, options are displayed. 2-Select setup description and select transmittal setups, the dialog box displayed just click modify. 3- (A) Under action and tick mark Bind External references and Bind as shown below photo.

Can you share an AutoCAD file?

Answer: They can use the Share command in the AutoCAD web app to create a link to the drawing file and then share that link with you.

How can I send AutoCAD drawing to Whatsapp?

How do I convert AutoCAD to PDF?

1. In Acrobat, select Tools, then Create PDF.
2. Select Single File, then Select a File from the options menu.
3. Upload your CAD file.
4. Click or tap on Create. This converts your selected file to a PDF.
5. Save your PDF to your desired location.

Why is AutoCAD file size so big?

Another issue that can cause DWG file to increase file size is because DGN linetype issue. This can happen if you work with DWG that contains DGN linetype. There is hotfix available for this issue, and the hotfix also provides clean up utility. You can download DGN hotfix here.

How do I compress STEP files?

1. encase the cad model in a simple cube. After transferring, delete the cube.
2. Zip, rar, or otherwise compress the file.
3. Span the file across multiple smaller files (zip and rar support spanning)
4. Create a 2D drawing and send it as a small PDF file.

Conclusion:

Everything you needed to know about Frequent question: How to create a zip file in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.

The article clarifies the following points:

• How can I send large DWG files?
• How do I create a CAD file?
• Where are CAD backup files saved?
• How do you save a file in AutoCAD?
• How do you send a sheet set in AutoCAD?
• How do I send xref files?
• How do I permanently attach an xref in AutoCAD?
• Can you share an AutoCAD file?
• How can I send AutoCAD drawing to Whatsapp?
• How do I convert AutoCAD to PDF?
