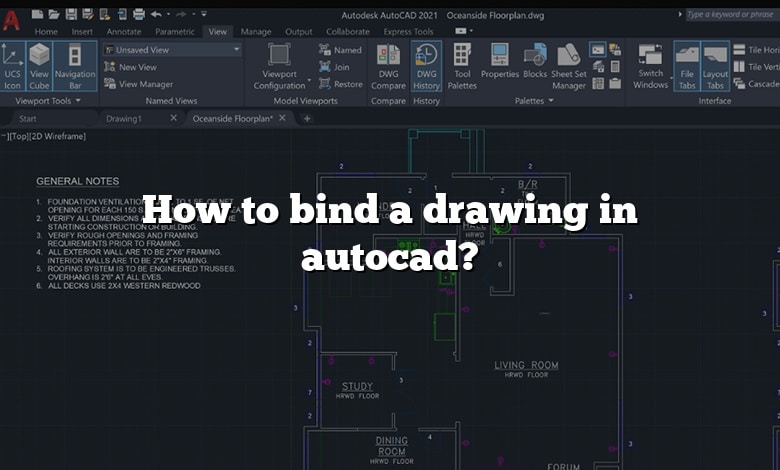

How to bind a drawing in autocad?

If your question is How to bind a drawing in autocad?, our CAD-Elearning.com site has the answer for you. Thanks to our various and numerous AutoCAD tutorials offered for free, the use of software like AutoCAD becomes easier and more pleasant.
Indeed AutoCAD tutorials are numerous in the site and allow to create coherent designs. All engineers should be able to meet the changing design requirements with the suite of tools. This will help you understand how AutoCAD is constantly modifying its solutions to include new features to have better performance, more efficient processes to the platform.
And here is the answer to your How to bind a drawing in autocad? question, read on.

Introduction

1. Do one of the following to choose Xref Manager ( ): On the ribbon, choose Insert > Xref Manager (in Reference). On the menu, choose Insert > Xref Manager.
2. Select the external reference to bind.
3. Click Bind.
4. Choose one of the following: •
5. Click OK.

As many you asked, how do you bind drawings in AutoCAD 2019?

1. Click Insert tab Reference panel Dialog box launcher. Find.
2. In the External References palette, select the reference name that you want to bind.
3. Right-click, and click Bind.
4. In the Bind Xrefs dialog box, select one of the following options:
5. Click OK to close each dialog box.

Best answer for this question, can I bind an image in AutoCAD?

Frequent question, what does it mean to bind an xref? Binding an xref to a drawing using the Bind method makes the xref a permanent part of the drawing and no longer an externally referenced file. The externally referenced information becomes a block.

People ask also, how do you bind a link in AutoCAD?

1. Once image file is open in Paint > on your keyboard ‘Ctrl + A’ together (shortcut to Select All) > then press ‘Ctrl + C'(shortcut for Copy to Clipboard)
2. Open your Autocad file that image needs to go into.
3. In command line type PASTESPEC > press ENTER.

How do you bound a CAD file?

1. Click Insert tab Reference panel Dialog box launcher. Find.
2. In the External References palette, select the reference name that you want to bind.
3. Right-click, and click Bind.
4. In the Bind Xrefs dialog box, select one of the following options:
5. Click OK to close each dialog box.

How do I bind a PDF in AutoCAD?

From within Autocad, open or create the file you wish to embed the PDF into. From the menus select “INSERT”, “OLE OBJECT…” Click “Browse” to locate and select the file you wish to embed. Click “OK” and “OK” again.

How do I lock an image in AutoCAD?

An image file is locked when AutoCAD Raster Design toolset creates a lock file using the image base name with a . l_k extension. The lock file is stored in the same directory as the image file or in the lock file directory if you specify one.

How do you turn a picture into a block in AutoCAD?

What is the difference between BIND and insert?

Insert vs. Bind Xrefs: “Bind converts the objects in the xref into a block reference. Named object definitions are added to the current drawing with a prefix of blockname $n$, where n is a number starting at 0.” Insert Xrefs: “Insert also converts the objects in the xref into a block reference.

What does to bind mean?

Definition of bind 1a : to make secure by tying His hands were bound with rope. b : to confine, restrain, or restrict as if with bonds … she was not wholly bound in mind by her middle-class existence— Delmore Schwartz. c : to put under an obligation binds himself with an oath.

What is AutoCAD bind type?

Specifies the default or controls the naming behavior to be applied to “named objects” in an xref when a bind or an edit-in-place operation is performed on it. Type: Integer.

What is bind type?

When BINDTYPE is set to 1, the merge behavior, if a bind operation is performed on the xref, the layer name remains the same, in this case Electrical. This merges the layers from the xref and the current drawing. Value. Description.

How do you bind in AutoCAD 2018?

1. Click Insert tab Reference panel Dialog box launcher. Find.
2. In the External References palette, select the reference name that you want to bind.
3. Right-click, and click Bind.
4. In the Bind Xrefs dialog box, select one of the following options:
5. Click OK to close each dialog box.

Why is xref not binding?

Known causes include: XREF is unloaded, orphaned, or is otherwise missing. XREF is part of a circular reference. XREF is attached more than once. XREF has been edited in 3rd party software.

How do I insert an image into AutoCAD without external reference?

In AutoCAD, click Edit menu > Paste Special. Select the options Paste and Picture (Metafile) in the Paste Special box. Click OK. Place the image in the drawing.

How do you bind multiple files in AutoCAD?

1-Go to file menu => eTransmitor type etransmit at the Command line, options are displayed. 2-Select setup description and select transmittal setups, the dialog box displayed just click modify. 3- (A) Under action and tick mark Bind External references and Bind as shown below photo.

How do I embed a JPEG into AutoCAD?

1. Click Insert tab References panel Attach. Find.
2. In the Select Image File dialog box, select a file name from the list or enter the name of the image file in the File Name box. Click Open.
3. In the Image dialog box, use one of the following methods to specify insertion point, scale, or rotation:
4. Click OK.

What is a bound file?

“Binding” usually refers to making xref files part of the current file so that only the one file has to be sent. If there are no xrefs, nothing needs to be done.

How do you bind xref to CAD?

1. Do one of the following to choose Xref Manager ( ): On the ribbon, choose Insert > Xref Manager (in Reference). On the menu, choose Insert > Xref Manager.
2. Select the external reference to bind.
3. Click Bind.
4. Choose one of the following: •
5. Click OK.

Conclusion:

I believe I have covered everything there is to know about How to bind a drawing in autocad? in this article. Please take the time to look through our CAD-Elearning.com site’s AutoCAD tutorials section if you have any additional queries about AutoCAD software. In any other case, don’t be hesitant to let me know in the comments section below or at the contact page.
