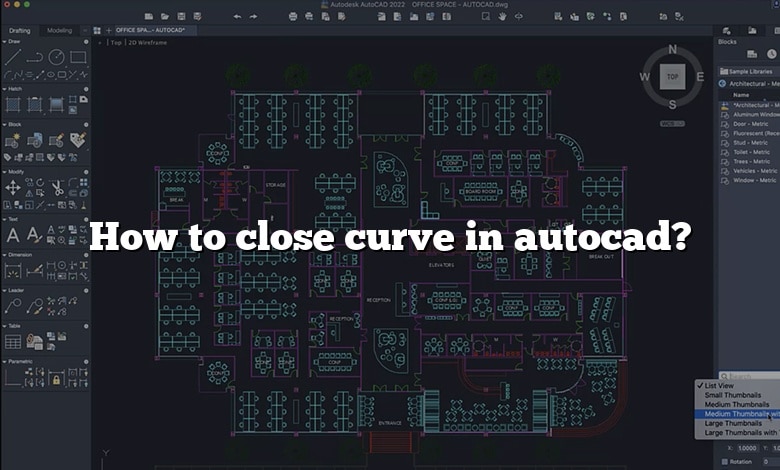

How to close curve in autocad? – The answer is in this article! Finding the right AutoCAD tutorials and even more, for free, is not easy on the internet, that’s why our CAD-Elearning.com site was created to offer you the best answers to your questions about AutoCAD software.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs. It is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your How to close curve in autocad? question, read on.
Introduction
You asked, how do you close an open curve in AutoCAD? To close a curve: Select an open curve: Select the Manage tab > Modify panel > Closed option.
Beside above, how do I close a shape in AutoCAD?
Quick Answer, how do I close two lines in AutoCAD?
- Click Home tab Modify panel Edit Polyline. Find.
- Select a polyline, spline, line, or arc to edit.
- Enter j (Join).
- Select one or more polylines, splines, lines, or arcs that are located end to end.
- Press Enter to end the command.
People ask also, how do you bend curve in AutoCAD?
- In an active 3D sketch with lines, click 3D Sketch tab Draw panel Bend .
- In the Bend dialog box, specify a Radius.
- (Optional) Deselect Equal to prevent automatic constraints.
- In the graphics window, click any line, sketch point, or included geometry to start the bend.
Edits polylines, objects to be joined to polylines, and related objects. Find. Common uses for PEDIT include joining 2D polylines, converting lines and arcs into 2D polylines, and converting polylines into curves that approximate B-splines (spline-fit polylines).
How do you flatten a 3d drawing in AutoCAD?
To flatten a drawing automatically in AutoCAD Use the FLATTEN command to change the Z values of all lines, arcs, and polylines to 0. Turn off or freeze any hatch layers with hatch patterns so they are not included in the selection. Type FLATTEN at the command line. Select all objects and press the Enter key.
How do you close a 3d object in AutoCAD?
How do I make a closed polyline in AutoCAD?
Enter c (Close) to create a closed polyline. Enter j (Join) to join contiguous lines, splines, arcs, or polylines. Enter w (Width) to specify a new uniform width for the entire polyline.
How do you break a line at an intersection in AutoCAD?
On the ribbon: HOME > MODIFY > then hover over the icons until it reports BREAK AT POINT (select that) … type F (read the prompts) …. select the line to break and break it at the INTERSECTION you want. That should do it.
How do you smooth a curve in AutoCAD?
What is arc command?
The ARC command, followed by three mouse clicks on a drawing, draws an arc of defined width. The first point defines a point on a circle, the second its diameter. Entering the second coordinate reduces the circle to a semi-circle, while the right button alters the direction from first to second point.
How do I convert an arc to a line in AutoCAD?
How do you use PEdit?
What is exploded in AutoCAD?
Explodes a compound object when you want to modify its components separately. Objects that can be exploded include blocks, polylines, and regions, among others. The color, linetype, and lineweight of any exploded object might change. Other results differ depending on the type of compound object you’re exploding.
What is polyline command?
Pline Command 15.1 A polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two.
How do I flatten in Autocad 2020?
Tool Set: Drafting tab > Modify panel > Flatten Objects. Menu: Modify > Flatten Objects. FLATTEN creates a 2D representation of selected objects and projects them onto the current viewing plane. FLATTEN results in 2D objects that retain their original layers, linetypes, colors and object types where possible.
How do I flatten a drawing in Autocad 2016?
There is no flattening command of 3D objects in LT and you can’t make one either. You can move content to Z=0 if needed and you can use PROPERTIES command to do the same as well as remove any fake-3D “thickness” settings but that is about it.
What does overkill in Autocad do?
OVERKILL deletes duplicate or overlapping lines, arcs and polylines. Combines partially overlapping lines and deletes arcs that are on circles.
What is Loft command in AutoCAD?
The loft command in AutoCAD is used to create 3D solid or surface. The 3D solid or surface is formed within the space between various cross sections. The cross-sections determine the outer shape of the solid or surface. To create a 3D object using LOFT, we are required to specify at least two cross-sections.
How do you turn a circle into a polyline?
Wrap Up:
I believe I have covered everything there is to know about How to close curve in autocad? in this article. Please take the time to look through our CAD-Elearning.com site’s AutoCAD tutorials section if you have any additional queries about AutoCAD software. In any other case, don’t be hesitant to let me know in the comments section below or at the contact page.
The article provides clarification on the following points:
- How do you close a 3d object in AutoCAD?
- How do I make a closed polyline in AutoCAD?
- How do you smooth a curve in AutoCAD?
- How do I convert an arc to a line in AutoCAD?
- How do you use PEdit?
- What is exploded in AutoCAD?
- What is polyline command?
- How do I flatten in Autocad 2020?
- What does overkill in Autocad do?
- How do you turn a circle into a polyline?
