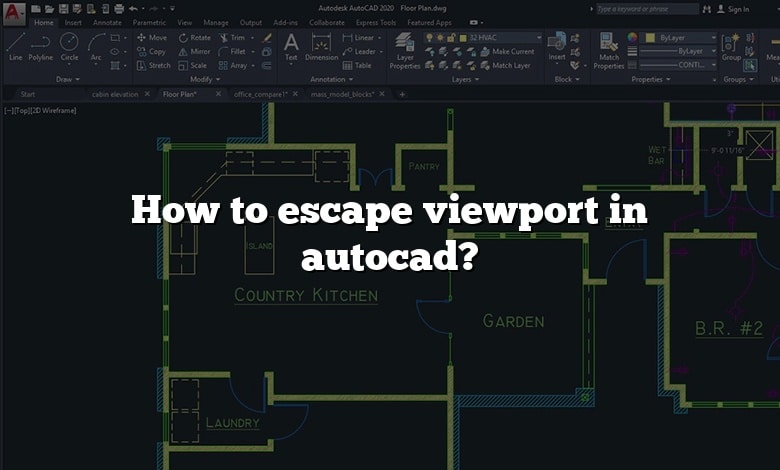

How to escape viewport in autocad?

Starting with this article which is the answer to your question How to escape viewport in autocad?.CAD-Elearning.com has what you want as free AutoCAD tutorials, yes, you can learn AutoCAD software faster and more efficiently here.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs and is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your How to escape viewport in autocad? question, read on.

Introduction

If your stuck in the viewport then you should be able to do as above and type PS then hit enter to get out of it. just for the record Control+R will jump from viewport to viewport.

Beside above, how do I get out of an unlocked viewport? On your right bottom you will find a lock icon(unlocked). Just click it (it locks)…. you are done.

You asked, what should you do if you are trapped in a viewport? Sometimes if you zoom in too far and go through the paper space viewport into model space, you can become stuck in the viewport. To solve this you need to be able to switch back out of the viewport into paper space.

Additionally, how do I get out of viewport when zoomed in AutoCAD?

1. Look on the status bar, at the bottom your AutoCAD, towards the right hand side. Notice the word Model, click on it, it now says Paper and you are free to zoom out.

Also know, how do you close a viewport?

1. From Layout, enter mview on the command line.
2. At the prompt, enter off.
3. Select the viewport to turn off and press ENTER.

How do I get my AutoCAD layout back?

Open the Options window by typing OPTIONS on the command line or clicking the Options button under the AutoCAD application menu at the top-left, click the Display tab, and then under the Layout elements section, enable the checkbox “Display Layout and Model tabs” and then click OK.

Why can’t I move my viewport in AutoCAD?

How do you escape from paper space?

How do you select a hidden viewport in AutoCAD?

Go to the layout tab that contains the problem viewport. From the Properties palette, select the Quick Select button on the top right. On the Quick Select dialog box, set the Object type to Viewport and click OK.

How do you zoom out on a viewport?

Keyboard Shortcut Press SHIFT and the +(plus) key to zoom in, or SHIFT and the -(minus) key to zoom out.

How do you exit a viewport in Draftsight?

1. Type Viewport.
2. Specify the Off option.
3. In the graphics area, select the Viewports to turn off. The model does not display in the selected Viewports.

How do you edit a viewport in Autocad?

1. Click a layout tab.
2. Click Layout tab Layout Viewports panel Clip.
3. Select either an existing object to designate as the new viewport boundary, or specify the points of a new boundary.
4. Click OK.

How do you hide a viewport box?

1. Switch to the layout that contains the viewport border that you do not want plotted.
2. On the Object Properties toolbar, click the Layers toolbar button.
3. In the Layers dialog box, click New.
4. Name the new layer.
5. Click the Freeze Layer icon for the new layer.
6. Click OK to close the dialog box.

How do I turn off the viewport in blender?

1. Move your mouse cursor inbetween the divided viewports.
2. Right Mouse click and select join from the Area Option popup menu.
3. Move your cursor over to the viewport you would like to collapse.
4. Repeat this step for any other viewports you wish to close.

How do I view a viewport drawing?

How do you move a layout in Autocad?

To move/rearrange the layout tab: Click & hold the layout tab with the left mouse button until an icon appears next to your cursor. Drag the layout tab to a new position and release the mouse button where the arrow is pointing.

How do you change paper space in CAD?

Click the layout tab for which you want to set the paper size. In the Page Setup Manager, Page Setups area, select the page setup that you want to modify. Click Modify. In the Page Setup dialog box, under Paper Size, select a paper size from the list.

What are viewports in AutoCAD?

Viewports allow you to create different views of the objects in your model space and display them on the printed page from different angles and at different scales.

How do I delete a hidden viewport in AutoCAD?

With the invisible viewport selected, start the VPCLIP command and type P to draw a polygonal viewport over location of the invisible one. The shape and size don’t matter. Start the VPCLIP command again, select the viewport you just created, and use the Delete option. The invisible viewport will now be visible.

How do you select a viewport in model space?

1. Choose from several viewport configurations by clicking the [+] or [-] control in the top-left corner of a viewport.
2. Drag the boundaries of viewports to adjust their size.
3. Press CTRL while dragging viewport boundaries to display the green splitter bar and create new viewports.

Final Words:

I hope this article has explained everything you need to know about How to escape viewport in autocad?. If you have any other questions about AutoCAD software, please take the time to search our CAD-Elearning.com site, you will find several AutoCAD tutorials. Otherwise, don’t hesitate to tell me in the comments below or through the contact page.

The following points are being clarified by the article:

• How do I get my AutoCAD layout back?
• Why can’t I move my viewport in AutoCAD?
• How do you exit a viewport in Draftsight?
• How do you edit a viewport in Autocad?
• How do you hide a viewport box?
• How do I turn off the viewport in blender?
• How do I view a viewport drawing?
• How do you move a layout in Autocad?
• How do you change paper space in CAD?
• How do I delete a hidden viewport in AutoCAD?
