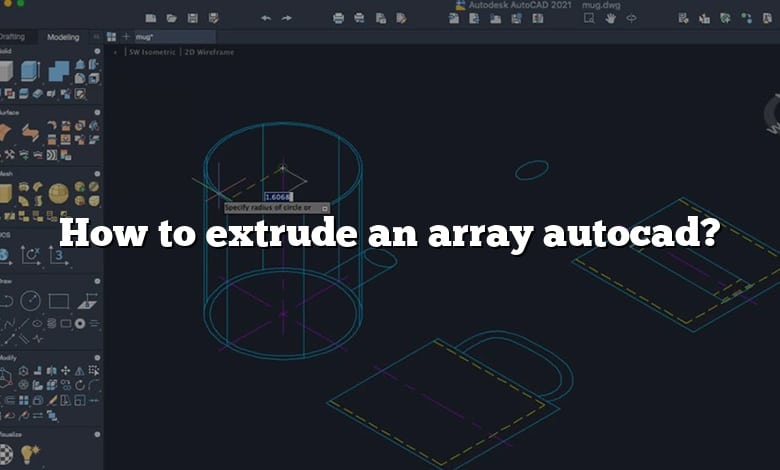

How to extrude an array autocad?

The objective of the CAD-Elearning.com site is to allow you to have all the answers including the question of How to extrude an array autocad?, and this, thanks to the AutoCAD tutorials offered free. The use of a software like AutoCAD must be easy and accessible to all.
AutoCAD is one of the most popular CAD applications used in companies around the world. This CAD software continues to be a popular and valued CAD alternative; many consider it the industry standard all-purpose engineering tool.
And here is the answer to your How to extrude an array autocad? question, read on.

Introduction

Best answer for this question, how do you extrude a plane in AutoCAD?

1. Select Extrude command from the ribbon panel, as shown below:
2. Select the object, which we want to Extrude.
3. Press Enter.

Beside above, how do you extrude mesh in AutoCAD? To extrude a mesh face, on the Mesh ribbon, in the Mesh Edit panel, click the Extrude Face tool. The program prompts you to select the objects to extrude and the Face subobject selection filter is automatically activated.

As many you asked, how do you extrude a polygon in AutoCAD?

Moreover, how do you polar an array in CAD?

1. Click Home tab Modify panel Polar Array. Find.
2. Select the objects to array.
3. Specify a center point. A preview array is displayed.
4. Enter i (Items) and enter the number of objects to array.
5. Enter a (Angle) and enter the angle to fill. You can also drag the arrow grips to adjust the fill angle.

How does array work in AutoCAD?

Creates copies of objects arranged in a pattern. You can create copies of objects in a regularly spaced rectangular, polar, or path array. Distributes copies of the selected object into any combination of rows, columns, and levels.

How do you extrude irregular shapes in AutoCAD?

How do you explode in AutoCAD?

1. Click Home tab Modify panel Explode. Find.
2. Select the objects to be exploded. For most objects, exploding has no visible effect.

How do you extrude a block in AutoCAD?

How do you do 3d mesh?

How do you convert 3d mesh to 3d solid?

1. Click Mesh tab Convert Mesh panel Convert Options drop-down.
2. Specify one of the following conversion options: Smooth, optimized.
3. Click Mesh Modeling tab Convert Mesh panel Convert to Solid.
4. Select a mesh object that has no gaps or intersecting faces.

Can you extrude a polyline in AutoCAD?

If you modify the original polyline, the surface immediately updates to reflect those changes. Start the command again, select the object you want to extrude, such as a circle, and then press ENTER. Then, right-click and choose the Direction option. The program prompts you to specify the start point of direction.

How do you extrude a face in AutoCAD?

To extrude faces of a solid, on the Home ribbon, in the Solid Editing panel, click the Extrude Faces tool. The program prompts you to select faces. Click to select the faces that you want to extrude. When you select a face, it highlights.

How do you create a surface extrusion?

1. Click Insert > Surface > Extrude.
2. Select a face:
3. Select other faces to define the extrude as required.
4. Select the end condition.

How do you create a polar array?

For Polar array, go-to rectangular array command icon of Modify menu of Home tab of this software and click on the drop-down arrow of this icon then choose polar array command from the list by click on it.

How do I trim an array in AutoCAD?

What is the difference between rectangular and polar array?

What is the difference between polar and rectangular arrays? Answer: Polar arrays copy objects in circular patterns. Rectangular arrays are arrangements of rows and columns.

How do I use an array in AutoCAD 2020?

1. Click on its icon (shown above) or type ARRAYPOLAR and hit Enter.
2. Select the reference object(s) and hit Enter.
3. Specify the center point of the array.

How do you use a rectangular array in AutoCAD?

1. Open the AutoCAD software.
2. Click on the Circle icon on the Ribbon Panel, as shown in the below image:
3. Specify the center point on the workspace or drawing area to draw the circle.
4. Specify the diameter of the circle.
5. Select the Rectangular Array from the ribbon panel.

How do I use an array in AutoCAD 2021?
