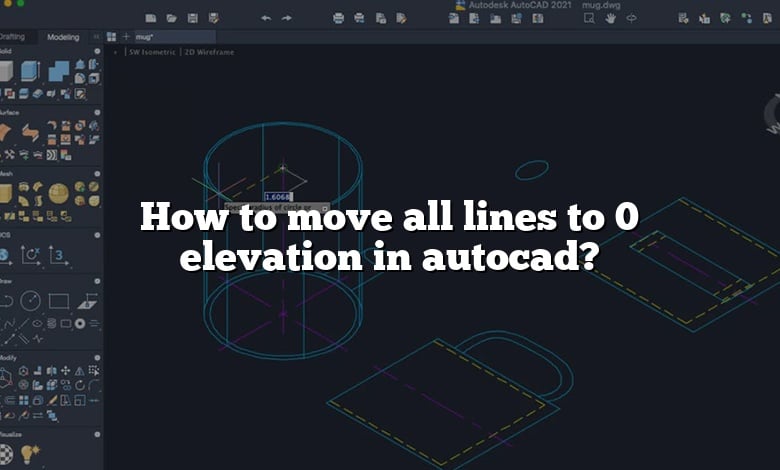

How to move all lines to 0 elevation in autocad?

If your question is How to move all lines to 0 elevation in autocad?, our CAD-Elearning.com site has the answer for you. Thanks to our various and numerous AutoCAD tutorials offered for free, the use of software like AutoCAD becomes easier and more pleasant.
Indeed AutoCAD tutorials are numerous in the site and allow to create coherent designs. All engineers should be able to meet the changing design requirements with the suite of tools. This will help you understand how AutoCAD is constantly modifying its solutions to include new features to have better performance, more efficient processes to the platform.
And here is the answer to your How to move all lines to 0 elevation in autocad? question, read on.

Introduction

1. Type in the CHANGE command.
2. Type ALL to select all objects and then Enter.
3. Type P for Properties.
4. Type E for Elevation.
5. Type 0 and then a final Enter to end the command.

Beside above, how do you set all lines to zero elevation in AutoCAD? type ALL for Select objects. type P for properties. type E for elevation. 0 enter.

Similarly, how do you move a drawing to 0 0 coordinate in AutoCAD?

Quick Answer, how do I change the line elevation in AutoCAD?

1. Double-click the elevation line you want to relocate.
2. On the Properties palette, expand Basic Location.
3. Click Additional Information.
4. Specify the location of the elevation line: If you want to… Then… relocate the elevation line.
5. Click OK.

People ask also, how do you make all lines coplanar in AutoCAD?

1. Select all of the lines to be modified.
2. Right-click and select Properties.
3. Set Start Z and End Z to 0 (zero) or another consistent value. The default may show “Varies.”

How do you move to absolute Coordinates in AutoCAD?

How do you zero a drawing in AutoCAD?

1. Type in the CHANGE command.
2. Type ALL to select all objects and then Enter.
3. Type P for Properties.
4. Type E for Elevation.
5. Type 0 and then a final Enter to end the command.

How do I move an entire drawing in AutoCAD?

1. Click Home tab Modify panel Move. Find.
2. Select the objects to move and press Enter.
3. Specify a base point for the move.
4. Specify a second point. The objects you selected are moved to a new location determined by the distance and direction between the first and second points.

How do you move an object to a coordinate in AutoCAD?

Using a Specific Coordinate If dynamic input is on: Type the pound sign (#) followed by the X-value, a comma, then the Y-value, for example #4.0,6.75. If dynamic input is off: Type the X value, a comma, then the Y value, for example 4.0,6.75.

How do you change the elevation of all points in Civil 3D?

1. Open the Prospector tab in Civil 3D.
2. Right-click Points or Point Group. Click Edit Points.
3. Press CTRL+A to select all of the points, or select them individually.
4. Right-click the selection of points. Click Datum.
5. When prompted, enter the desired change in elevation.

How do I get rid of Z coordinates in AutoCAD?

Easy… Making sure you’re in your top down view and select everything in your drawing (Ctrl+A). With everything selected use the command “FLATTEN”. This will Flatten your drawing removing any Z axis values.

How do I use UCS command in AutoCAD?

To define your UCS manually, just click two points to define the orientation of the X axis. To set your UCS based on the the angle of an object in your drawing, such as a polyline, click that object. As you move the cursor up or down, you’ll see a line extending 90 degrees from the object you selected.

Are all lines coplanar?

How do I change my UCS back to normal in AutoCAD?

Use the UCS command and select World. On the View tab of the Ribbon, go to the Coordinates panel and select World from the drop-down menu. Under the ViewCube expand the coordinate system drop down and select WCS. On the command line in AutoCAD, type PLAN and then World.

How do you move in Z axis?

What does F12 do in AutoCAD?

F12. This command will allow us to use the Dynamic Input command of this software. Dynamic Input provides user cursor input, dimension input, and dynamic prompts. When you right-click after selecting dynamic input, you can select any input according to your requirement.

What is Polar Tracking in AutoCAD?

Polar tracking restricts cursor movement to specified angles. PolarSnap restricts cursor movement to specified increments along a polar angle. When you create or modify objects, you can use polar tracking to display temporary alignment paths defined by the polar angles you specify.

What is Ortho mode in AutoCAD?

Ortho mode is used when you specify an angle or distance by means of two points using a pointing device. In Ortho mode, cursor movement is constrained to the horizontal or vertical direction relative to the UCS.

How do you define 0 0 in AutoCAD?

How do you move freely in AutoCAD?

Command line: To start the Move tool from the command line, type “M” and press [Enter]. To move objects, select any objects you wish to move and press [Enter]. Two points need to be clicked, the move from point or base point and the move to point.

Wrapping Up:

I sincerely hope that this article has provided you with all of the How to move all lines to 0 elevation in autocad? information that you require. If you have any further queries regarding AutoCAD software, please explore our CAD-Elearning.com site, where you will discover various AutoCAD tutorials answers. Thank you for your time. If this isn’t the case, please don’t be hesitant about letting me know in the comments below or on the contact page.
