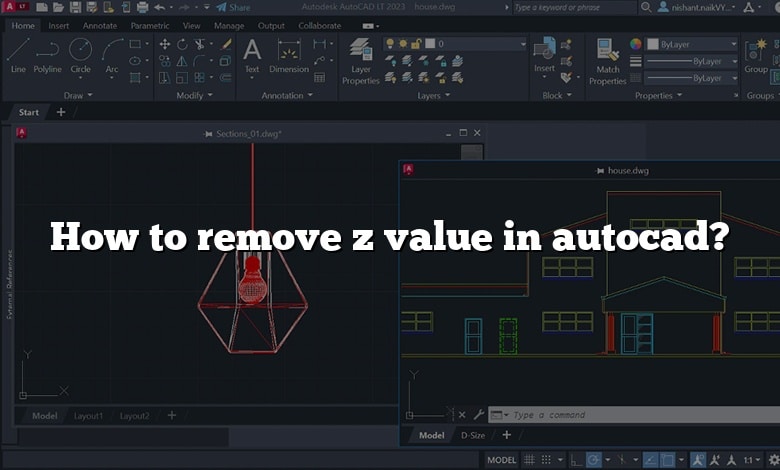

How to remove z value in autocad?

The objective of the CAD-Elearning.com site is to allow you to have all the answers including the question of How to remove z value in autocad?, and this, thanks to the AutoCAD tutorials offered free. The use of a software like AutoCAD must be easy and accessible to all.
AutoCAD is one of the most popular CAD applications used in companies around the world. This CAD software continues to be a popular and valued CAD alternative; many consider it the industry standard all-purpose engineering tool.
And here is the answer to your How to remove z value in autocad? question, read on.

Introduction

1. Type in the CHANGE command.
2. Type ALL to select all objects and then Enter.
3. Type P for Properties.
4. Type E for Elevation.
5. Type 0 and then a final Enter to end the command.

Frequent question, how do you zero the Z axis in AutoCAD?

As many you asked, how do you change the Z coordinate in AutoCAD?

1. Right-click the UCS icon, and click Z Axis.
2. Specify a point for the new origin (0,0,0).
3. Specify a point that lies on the positive Z axis.

Also the question is, how do you move Z in AutoCAD?

Best answer for this question, how do I change my UCS back to normal in AutoCAD? Use the UCS command and select World. On the View tab of the Ribbon, go to the Coordinates panel and select World from the drop-down menu. Under the ViewCube expand the coordinate system drop down and select WCS. On the command line in AutoCAD, type PLAN and then World.Dynamic Input (command: DYNMODE or F12) affects this behavior. When it is turned on, and you type 0,0 for your displacement, you are essentially telling the software to leave the object right where it is. But when it is toggled off and you type in 0,0, you are instructing the software to move the object to the origin.

How do you remove non coplanar lines in AutoCAD?

1. Select all of the lines to be modified.
2. Right-click and select Properties.
3. Set Start Z and End Z to 0 (zero) or another consistent value. The default may show “Varies.”

How do you add z values in AutoCAD?

1. Launch AutoCAD.
2. Type APPLOAD from command line to load LISP file.
3. When it’s successfully loaded, convert the view to ‘Front view’
4. Type 3DARC from the command line.
5. Draw 3 points in model space.

How do you check XYZ in AutoCAD?

1. Click Home tab Utilities panel ID Point. Find.
2. Click the location that you want to identify. The X,Y,Z coordinate values are displayed at the Command prompt.

How do I draw a Z line in AutoCAD?

How do you move in Z axis?

How do you reset UCS?

You can reset the UCS to its original position in the current drawing view or in all drawing views. In an open drawing, go to the Views tab, and click User coordsys > Reset current ( Ctrl + 1 ). In an open drawing, go to the Views tab, and click User coordsys > Reset all ( Ctrl + 0 ).

How do I turn off Dynamic UCS in AutoCAD 2017?

To toggle on and off the Dynamic UCS, use the F6 key. Alternatively, type UCSDETECT into the command line and then enter 0 (not-active) or 1 (active).

How do I reset origin in AutoCAD?

1. Click the UCS icon.
2. Click and drag the square origin grip to its new location. The UCS origin (0,0,0) is redefined at the point that you specified. Tip: To place the origin with precision, use object snaps or grid snaps, or enter specific X,Y,Z coordinates.

How do you start a 0 0 line in AutoCAD?

How do you show zeros in AutoCAD?

What is Dynmode?

DYNMODE Turns Dynamic Input features on and off. When all features are on, the context governs what is displayed. When DYNMODE is set to a negative value, the Dynamic Input features are not visible, but the setting is stored.

What is non-coplanar lines?

Two or more lines are said to be coplanar if they lie on the same plane, and the lines that do not lie in the same plane are called non-coplanar lines.

What is non-coplanar?

Definition of noncoplanar : not occupying the same surface or linear plane : not coplanar two noncoplanar points.

How do you flatten a drawing in AutoCAD?

To flatten a drawing automatically in AutoCAD Use the FLATTEN command to change the Z values of all lines, arcs, and polylines to 0. Turn off or freeze any hatch layers with hatch patterns so they are not included in the selection. Type FLATTEN at the command line. Select all objects and press the Enter key.

How do I flatten a 2d drawing in AutoCAD?
