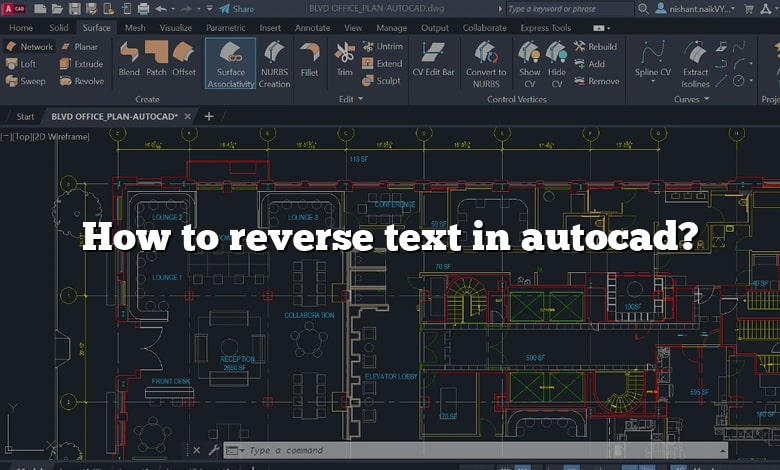

How to reverse text in autocad?

Starting with this article which is the answer to your question How to reverse text in autocad?.CAD-Elearning.com has what you want as free AutoCAD tutorials, yes, you can learn AutoCAD software faster and more efficiently here.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs and is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your How to reverse text in autocad? question, read on.

Introduction

Go to the Express Tools tab of the Ribbon and, within the Text Panel, expand Modify Text and click on Rotate. Alternatively, you can type TORIENT in the command line: Select all of the text whose orientation you wish to change and press ENTER. The default option is ‘Most Readable’.

Beside above, can you write backwards text in AutoCAD? Or, you could open the Block in the Block Editor [BEDIT command] or in REFEDIT, and just Mirror the relevant elements in the Block definition, with MIRRTEXT set so that in “base” condition the text is backwards — do it once and it will be changed in all Insertions of that Block.

Also, how do you fix backwards text in AutoCAD? Select or type UCS, select by object, select the RIGHT side of an object line to align the horizontal axis, (literally the right side, not correct side). The UCS lines should be backwards. Meaning x axis should point left and the y should point down.

You asked, can we mirror text in AutoCAD 2021? You can create objects that represent half of a drawing, select them, and mirror them across a specified line to create the other half. Note: By default, when you mirror a text object, the direction of the text is not changed.

Similarly, how do I mirror text in AutoCAD 2018?

1. Press Esc to make sure that no command is active and no objects are selected.
2. Click the Mirror button on the Home tab’s Modify panel, or enter MI and press Enter.
3. Select at least one object, and press Enter to end the object selection.

Simply type in MirrText at the Command line, then change the setting so that the text will not be mirrored along with the object.”

How do I change text direction in AutoCAD?

1. Click Home tab Annotation panel Text Style. Find.
2. In the Text Style dialog box, select a text style from the Style Name list.
3. Under Effects, select Vertical.
4. To update existing text that uses this text style, click Apply.
5. Click Close.

What is mirror command in AutoCAD?

The mirror command in AutoCAD is used to create a copy (mirror copy) of the selected object. We can also delete the source object after mirroring the object. The objects that represent the same as the half of their object can be mirrored across a center line to create the other half of the object.

How do I mirror in AutoCAD 2021?

1. Click Home tab Modify panel Mirror. Find.
2. Select the objects to mirror.
3. Specify the first point of the mirror line.
4. Specify the second point.
5. Press Enter to retain the original objects, or enter y to erase them.

How do you flip in Autodesk?

Select the layer you want to flip. In the menubar, select Image > Flip Layer Vertically.

How do you invert a selection in Autocad?

Right-click a component or a group of selected components, select Selection Invert Selection.

How do I use modify tool mirror in Autocad?

1. Click Home tab Modify panel Mirror. Find.
2. Select the objects to mirror.
3. Specify the first point of the mirror line.
4. Specify the second point.
5. Press Enter to retain the original objects, or enter y to erase them.

How do I rotate text leaders in Autocad?

1. from MLEADERSTYLE command , change your Multileader type from Block to Mtext . ( see below image )
2. select Frame text in the same dialog tab . ( see below image )
3. Now you have a new multileader with rotate option .

How do you reverse a linetype?

Reversing direction of linetype: To start Reverse command Select reverse tool from expanded modify panel of the home tab or use its command equivalent REVERSE and click on the line which you want to reverse and press enter.

How do I rotate text in a block?

Hold the left mouse button and move your mouse left or right to rotate the text block. Release the left mouse button to set the rotation.

How do I mirror text?

1. Insert a text box in your document by clicking Insert > Text Box, and then type and format your text. For more details, see Add, copy, or delete a text box.
2. Right-click the box and click Format Shape.
3. In the Format Shape pane, click Effects.
4. Under 3-D Rotation, in the X Rotation box, enter 180.

How do I mirror in AutoCAD 2020?

1. Click Home tab Modify panel Mirror. Find.
2. Select the objects to mirror.
3. Specify the first point of the mirror line.
4. Specify the second point.
5. Press Enter to retain the original objects, or enter y to erase them.

What is the command to mirror an object?

Creates a mirrored copy of selected objects. You can create objects that represent half of a drawing, select them, and mirror them across a specified line to create the other half. Note: By default, when you mirror a text object, the direction of the text is not changed.

How do I mirror in AutoCAD 2022?

Set the MIRRTEXT system variable to 1 if you do want the text to be reversed. The following prompts are displayed. Use an object selection method to select the objects to be mirrored. Press Enter to finish.

How do I mirror in AutoCAD 2007?

How do you mirror Hatch in AutoCAD?

Bottom line:

I believe I covered everything there is to know about How to reverse text in autocad? in this article. Please take the time to examine our CAD-Elearning.com site if you have any additional queries about AutoCAD software. You will find various AutoCAD tutorials. If not, please let me know in the remarks section below or via the contact page.

The article clarifies the following points:

• How do I change text direction in AutoCAD?
• What is mirror command in AutoCAD?
• How do I mirror in AutoCAD 2021?
• How do you flip in Autodesk?
• How do you invert a selection in Autocad?
• How do I use modify tool mirror in Autocad?
• How do I mirror in AutoCAD 2020?
• What is the command to mirror an object?
• How do I mirror in AutoCAD 2022?
• How do you mirror Hatch in AutoCAD?
