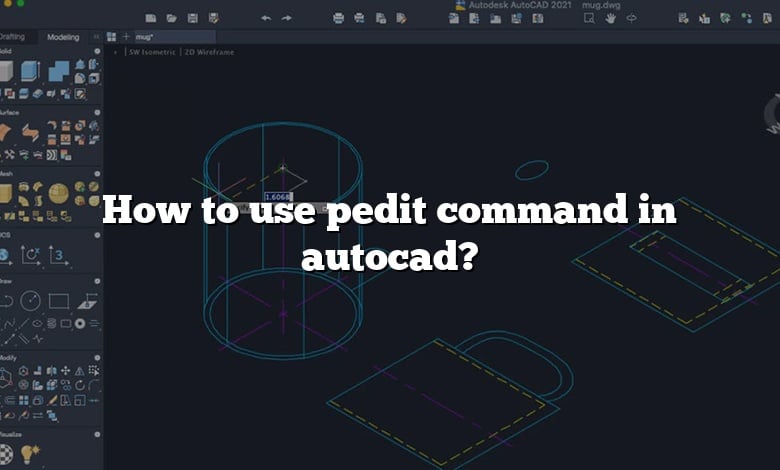

How to use pedit command in autocad?

With this article you will have the answer to your How to use pedit command in autocad? question. Indeed AutoCAD is even easier if you have access to the free AutoCAD tutorials and the answers to questions like. Our CAD-Elearning.com site contains all the articles that will help you progress in the study of this wonderful software. Browse through our site and you will find different articles answering your different questions.
The use of parametric design in AutoCAD makes it a powerful tool for designers and engineers. The designer can observe the impact of adjustments on neighboring components or even on the entire solution. This makes it quick and easy for designers to identify and solve problems.
And here is the answer to your How to use pedit command in autocad? question, read on.

Introduction

In this regard, what is the Pedit command in AutoCAD? Edits polylines, objects to be joined to polylines, and related objects. Find. Common uses for PEDIT include joining 2D polylines, converting lines and arcs into 2D polylines, and converting polylines into curves that approximate B-splines (spline-fit polylines).

Also the question is, how do you join polylines Pedit?

  1. The process is fairly simple.
  2. Type in ‘pedit’
  3. Hit enter.
  4. Use ‘m’ enter to select multiple line segments.
  5. Select all the lines you would like to join.
  6. and hit enter to (y) to convert your lines to polylines if necessary.

Similarly, how do you join multiple lines in AutoCAD?

  1. Click Home tab Modify panel Edit Polyline. Find.
  2. Select a polyline, spline, line, or arc to edit.
  3. Enter j (Join).
  4. Select one or more polylines, splines, lines, or arcs that are located end to end.
  5. Press Enter to end the command.
See also  How to move object in z axis autocad?

You asked, how do you remove gaps in AutoCAD? You can press Delete or use the ERASE command to remove mesh faces. The removal leaves a gap in the mesh. Deleting a face removes only the face. Deleting an edge removes each adjacent face.

  1. Click Home tab Modify panel Edit Polyline. Find.
  2. Select the polyline to modify.
  3. Enter e (Edit Vertex). The first vertex is marked with an X.
  4. Enter w (Width).
  5. Enter the starting and ending widths.
  6. Press Enter to move to the next vertex or x to stop editing the vertex.

How do you create an arc within a polyline?

How do you automatically connect lines in AutoCAD?

How do I find gaps in AutoCAD?

use join command, window area, hit enter. mouse over boundary, it will highlight the polyline segments and give you a pretty good idea of the gap/overlap.

Can different polylines be joined together?

Spline-fit polylines return to their original shape when joined. Polylines cannot be joined into a Y shape. If the properties of several objects being joined into a polyline differ, the resulting polyline inherits the properties of the first object that you selected.

How do I combine multiple objects into one in AutoCAD?

  1. Click Home tab Modify panel Join. Find.
  2. Select a source object or select multiple objects to join together.
  3. Valid objects include lines, arcs, elliptical arcs, polylines, 3D polylines, and splines.

What is the shortcut key for JOIN command?

Select the lines to be joined. Hit Ctrl+Shift+P or F1 .

See also  Frequent answer: How to insert a georeferenced image in autocad?

How do I fill gaps in AutoCAD?

How do I fix a broken line in AutoCAD?

  1. Unlock, thaw, and turn on all layers.
  2. Choose a point close to the objects and note down its coordinates.
  3. Type MOVE and press Enter.
  4. Type ALL and press Enter.
  5. Choose the previously determined point as a base point and 0,0 as an end point.
  6. Save and close the drawing.

What does Ltscale do in AutoCAD?

Linetype scale (LTSCALE) determines the scale and appearance of dashed lines as they appear in your drawing. This setting becomes especially important when you go to plot, since lines that appear dashed in Model Space may appear solid in Paper Space if their LTSCALE isn’t exactly correct.

How do you change polyline size in Autocad?

Select the line and in the PROPERTIES palette, change the Global Width to zero. To change multiple polylines: enter QSELECT, select Polyline, Global Width, and Not Equal to zero. This allows changing the Global Width of all the selected polylines to zero at the same time in the Properties Palette.

How do I edit multiple polylines in Autocad?

For that, type “PE,” then press “Enter” and select “Multiple” from the command line. Now, click on all polyline entities from the drawing area and press “Enter” again. Select “Fit” from the options in the command line and press “Enter” again to exit the command.

How do I extend a polyline in Autocad?

How do I use arc command in AutoCAD?

Access Methods Menu: Draw > Arc. To create an arc, you can specify combinations of center, endpoint, start point, radius, angle, chord length, and direction values. Arcs are drawn in a counterclockwise direction by default. Hold down the Ctrl key as you drag to draw in a clockwise direction.

See also  How to create mesh in autocad?

How do I turn a polyline into a curve in AutoCAD?

What is arc command?

The ARC command, followed by three mouse clicks on a drawing, draws an arc of defined width. The first point defines a point on a circle, the second its diameter. Entering the second coordinate reduces the circle to a semi-circle, while the right button alters the direction from first to second point.

Wrap Up:

Everything you needed to know about How to use pedit command in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.
