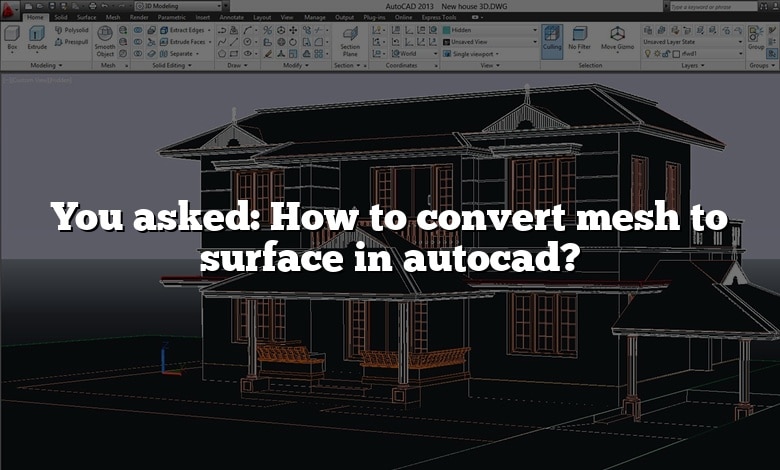

You asked: How to convert mesh to surface in autocad?

Starting with this article which is the answer to your question You asked: How to convert mesh to surface in autocad?.CAD-Elearning.com has what you want as free AutoCAD tutorials, yes, you can learn AutoCAD software faster and more efficiently here.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs and is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your You asked: How to convert mesh to surface in autocad? question, read on.

Introduction

1. Click Convert Mesh tab Convert Mesh Convert to Surface. Find.
2. Select a mesh object and press Enter. The object is converted to a procedural surface.
3. Click Surface tab Control Vertices panel Convert to NURBS. Find.
4. Click the surface object to convert it to a NURBS surface.

Subsequently, how do you change a mesh to a surface?

1. Apply Mesh > Mesh Repair > Fill Holes to all component meshes.
2. Apply Mesh > Mesh Repair > Unify Normals to all component meshes.
3. Join all component meshes with Mesh > Mesh Boolean > Union.
4. Enter “MeshtoNURB” at the command line to convert mesh to solid.

Beside above, how do you convert polyface mesh to surface?

1. Type FACETERSMOOTHELEV into the command line and press Enter.
2. Set the system variable to 0 and press Enter.
3. Type CONVTOMESH into the command line and press Enter.
4. Type CONVTOSURFACE into the command line and press Enter.

Correspondingly, how do you change 3d face to surface in Autocad?

Likewise, how do you convert mesh Rhino to surface?

The basic answer would be: A Surface is a curved area, that are created from a single entity. A Mesh is a surface that is created from triangles and quadrilaterals.

How do you convert mesh to body fusion?

1. Select the mesh body.
2. Each color represents a different face.
3. Adjust the boundary accuracy to make sure that each face is a different color.
4. Click OK.
5. From the modify menu click Convert Mesh.

How do you make a 3D face into a solid?

1. Enter CONVTOSURFACE on the command line.
2. Select the face that you want to convert.
3. Enter THICKEN on the command line.
4. Select the surface.
5. Enter a thickness value for the selected surface on the command line.
6. When prompted, choose whether or not to erase the defining surface.

How do you convert to Polymesh in Autocad?

What is a polyface mesh in Autocad?

How do I convert lines to surface in AutoCAD?

1. Click Modeling tab > Surface panel > Convert to Surface.
2. Select the objects you want to convert and press Enter. You can convert 2D solids, meshes, regions, planar 3D faces, and polylines, lines, and arcs with thickness.

How do you make a surface in AutoCAD?

Go to the Prospector tab in Toolspace and right click on Surfaces, select Create Surface. Alternatively, you can type CREATESURFACE at the command line. Either method will bring the Create Surface Dialogue Box up as shown below.

Can you make a surface from 3D polylines?

If this is the case Civil 3D has tools that make creating a surface from 3D faces or 3D lines representing a TIN both accurate and easy. On the Prospector tab of the Toolspace, right-click on Surfaces and select >> Create Surface.

How do you change mesh into surface in grasshopper?

Can you turn a mesh into a solid in Rhino?

Will it be possible for a novice Rhino user like myself to quickly turn this mesh into a solid model? The short answer is no.

How do you flatten a mesh in Rhino?

In the file you posted there are only meshes so use Squish to flatten the mesh. If you have the surfaces you created originally then you can try Smash.

Is mesh a surface?

The surface mesh is a representation of a surface that consists of vertices, edges and faces. There are currently two distinct alternatives for the surface representation in the deformable meshing literature, namely triangular and simplex meshes.

What is NURBS in CAD?

Non-Uniform Rational B-Splines (NURBS) is simply the name for the mathematics that is used to create the geometry in Alias, and in many other CAD systems.

Are solids and meshes the same?

Meshes are extremely useful in some cases and not in others. Solids and surfaces are parametric representations and are resolution independent. You can turn a 10mm sphere into a 100m sphere and they’ll be both as smooth. A mesh has a finite number of points and lines and will show as jagged when you scale it up.

How do I convert STL to solid?

How do you simplify mesh in Fusion 360?

1. In the Design workspace, on the Mesh tab, select Modify > Reduce .
2. In the canvas, select a mesh body or face groups on a mesh body.
3. In the dialog, select a reduction Type and adjust associated settings:
4. Click OK.

Wrap Up:

I believe I covered everything there is to know about You asked: How to convert mesh to surface in autocad? in this article. Please take the time to examine our CAD-Elearning.com site if you have any additional queries about AutoCAD software. You will find various AutoCAD tutorials. If not, please let me know in the remarks section below or via the contact page.
