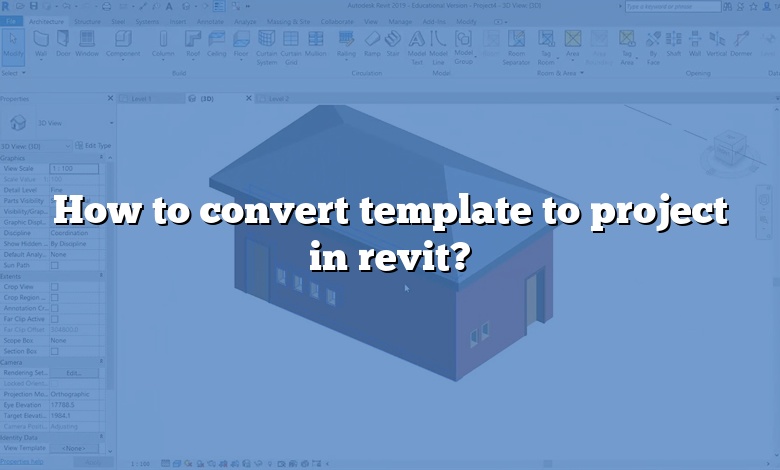

How to convert template to project in revit?

1. In Revit, click the File Ribbon tab, hover the mouse over New, and then select Project.
2. If the desired template is not in the drop-down list of Project Templates, click Browse.
3. In the Choose Template dialog box, navigate to the . rte file you’ve been working in.
4. Click OK.
5. The new “project” (.
6. Save the project.

You asked, can I change a Revit template to project? Revit does not allow template files to be directly saved as a project file (using the Save As command). The process for creating a project from a template would be to select to create a project (Ctrl+N) and specify the template to use for the new project.

Correspondingly, how do I import a Revit template to an existing project? Right click on the Families node in the project browser and select save. Direct to a specific folder and all of the families in the project are saves there. Then reload them into your template. If they are detail components you may also be able to transfer in the drafting view.

Considering this, how do I extract a project template in Revit?

1. Click File.
2. Go to Save As.
3. Choose Template.
4. Choose a location and name and click Save.

Subsequently, can I copy View template to another project Revit?

Solution. RTE (template) files and RVT (project) files are actual Revit® projects. The difference between the two is that the template is used to start a new project. When you click on Save, you will not be allowed to overwrite the template file, but you will be prompted for a new file name and location.

How do you change from structural template to architectural template in Revit?

How do I install Revit templates?

1. Open Revit.
2. Go to the Revit Options -> File Locations.
3. Click the Green + sign, and enter the desired default project template.
4. Set the Default path for family template files to the following:

How do I use Revit templates?

How do I convert RTE to RVT?

1. Click the File Ribbon tab, then New -> Project (or use the shortcut Ctrl + N).
2. Click on “Browse” and select your RTE file.
3. In the “Create new” portion of the dialog make sure that “Project” is selected and click OK.

What is project template in Revit?

Revit comes with several templates pre-installed ranging from Architectural Templates to Structural Templates. These template files are the starting points of your projects and are designed to save you time setting up a new project.

What is the Revit template file format?

Revit natively outputs 3D models to the proprietary RVT file format with the . rvt file extension.

What is the difference between construction template and architectural template in Revit?

We can conclude that the architectural template is aimed more at projecting, while the construction template is aimed at following the construction process in a deeper way.

Can you save a view template in Revit?

You can save the settings of a view to a view template which can then be transferred into other projects using Transfer Project standards.

How do I copy from one project to another in Revit?

How do I copy and paste from one Revit file to another?

Go to the file you want to copy from, highlight the objects to copy and type “Ctrl-C” (that is, hold down the Ctrl key and type “C”). Then open the file you want to paste that element into and type “Ctrl-V.”

Why is Revit template important?

Template files provide a reliable way to begin each new project file and ensure that it starts with the right collection of settings, features, and office standards. Using a template does not, however, guarantee successful project delivery.

Where are Revit template files located?

The default location for templates will be within the path C:ProgramDataAutodeskRVT ####Templates. Enable Hidden Items in File Explorer to see the ProgramData folder: View hidden files and folders in Windows. If the desired path does not exist, it can be set up in Windows explorer. If using a custom Revit.

How do I view a template in Revit?

1. On the View Control Bar, click Visual Style Graphic Display Options.
2. In the Graphic Display Options dialog, define the options as desired.
3. Click Save as View Template.
4. In the New View Template dialog, enter a name for the template, and click OK.
5. Modify view template property values as needed.
6. Click OK.

How do I create a project in Revit Architecture?

1. Before You Begin. Consider whether the following options will be useful.
2. Set Up the Project. Create a project in Revit and enter project-specific information.
3. Create the Site Plan. The site plan provides context for the building model.

What is the difference between Revit structure and architecture?

Structure has “Architect and Site” tab, MEP has “Architect” only – no Site tools. MEP does not have tools for Openings by Face, Shaft, Wall, Vertical, or Dormer. Only MEP has Import gbXML. MEP has additional Copy/Monitor features for Air Terminals, Lighting Fixtures, Mechanical Equipment, and Plumbing Fixtures.

What is a structural template?

Template structure is a structure that you copy & clone to get the real, “workable” structures. Technically, template structures are ordinary structures, containing ordinary issues. It is up to you to designate a structure to be a template and configure it accordingly.

How do I add a library to Revit?

Here are the full steps to go through: Select the Autodesk Revit Content Libraries #### for the version you wish to update. Choose “Uninstall/Change.” Once the install wizard launches, select “Add/Remove Features.” In the dialog, select the libraries you wish to install, then click “Next.”

Where are Revit libraries located?

To start the extraction you will need to extract the files to the default content location which can be found at the following location (C:ProgramDataAutodeskRVT Libraries). Make sure you save them under the correct Revit folder location. I hope you found this helpful.

What is Revit content library?

Revit content is a set of collections of specific files to install with your application based on location and discipline. This content allows you to work on projects, while referencing appropriate standards for each geographical region. Same goes for a Revit content library.

What is BIM template?

Project templates allow you to save the settings of a past or present project and apply it to another. Project templates can be created with a few clicks so when you can create a new project you simply select an existing project template.
