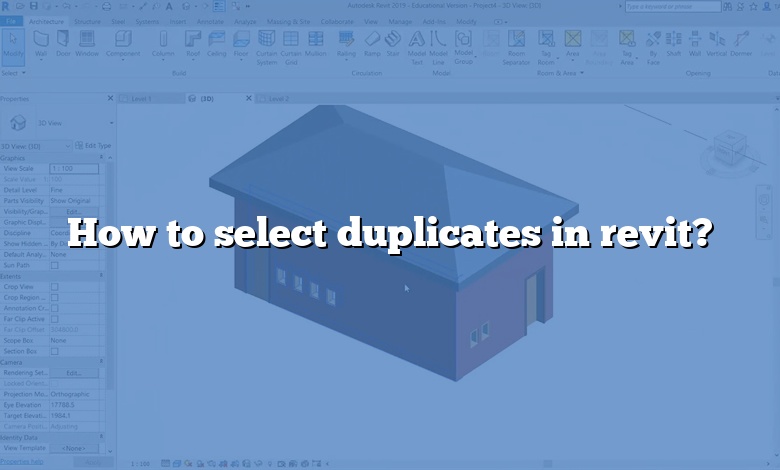

How to select duplicates in revit?

1. Click Modify Schedule/Quantities tab Filter Not Placed & Unenclosed Items panel (Isolate). This tool filters the schedule so that it lists only the rooms that are not placed or enclosed.
2. Drag the cursor across the schedule rows for the rooms to delete.

You asked, how do I delete a identical instance in Revit?

1. Make sure the Sort By criteria is set to Types.
2. Right click on the top level warning description.
3. Choose Retain Originals or Retain Latest.
4. Ideate Delete will show you ALL elements that have Identical Instance warnings.
5. Use the red “x” within Ideate Explorer to delete.

People ask also, how do you duplicate elements in Revit?

1. Select the elements to copy, and then click Modify | tab Modify panel (Copy).
2. Click Modify tab Modify panel (Copy), select the elements to copy, and then press Enter .

Subsequently, how do you duplicate text in Revit?

1. To Copy Text cleanly from Microsoft Word into AutoCAD or Revit:
2. Step One: Highlight the text in Word & COPY to Clipboard (CNTRL+C)
3. Step Two: In either AutoCAD or Revit begin the TEXT command.
4. Step Three: Click out in the drawing area to begin the text box.
5. Step Four: Paste the text into the text box (CNTRL+V)

Additionally, how do I filter a Revit schedule? On the Filter tab of the Schedule Properties dialog (or the Material Takeoff Properties dialog), create filters that limit the display of data in a schedule. You can create up to 4 filters, and all filters must be satisfied for the data to display. Many types of scheduled fields can be used to create filters.

What is scheduling in Revit?

A schedule is a tabular display of information, extracted from the properties of the elements in a project. A schedule can list every instance of the type of element you are scheduling, or it can collapse multiple instances onto a single row, based on the schedule’s grouping criteria.

How do you select multiple elements in Revit?

1. While pressing Ctrl , click each of the elements.
2. Draw a selection box by placing the cursor on one side of the elements to be selected and dragging it diagonally to form a rectangular boundary.
3. Press Tab to highlight connected elements, and then click to select.

How do you overkill in Revit?

Select objects in a drawing (use CTRL-A to select everything) and then type OVERKILL on the command line. Click OK on the Delete Duplicate Objects dialog window, adjusting settings as desired (the default options are usually sufficient). Overkill deletes information that is overlaying other items.

How do I make models faster in Revit?

1. Tip #1 – Using Internal Notes.
2. Tip #2 – Learn the Keyboard Shortcuts.
3. Tip #3 – Avoid Bad Clicking.
4. Tip #4 – Use Scheduling to Your Advantage.
5. Tip #5 – Use Those Plug-Ins and Apps.
6. Tip #6 – Have the Right Hardware.
7. Tip #7 – Using Temporary View Properties.

How do you duplicate a group in Revit?

How do you duplicate a model group in Revit?

1. Select the Group you wish to duplicate.
2. In the Properties Tab, select the Edit Type button to open the Type Properties menu.

How do you use the copy tool in Revit?

1. Select one or more elements in the drawing area.
2. Element’s contextual tab will appear -> Modify panel -> Copy.
3. Click once in the drawing area to begin moving and copying the elements.
4. Move the cursor away from the original elements and toward the area where you want to place a copy.

What is duplicate with detailing in Revit?

The Duplicate with detailing option creates a duplicate view including the detail and annotations elements. They are independent from elements of the parent view. The Duplicate as a dependent option creates a dependent view that behaves as the parent view.

What does duplicate in Revit mean?

Duplicates a view exactly as seen. Any changes in one view will affect the other. This is also used when you need to place the same view on more than one drawing sheet.

When can I duplicate a dependent in Revit?

Duplicate as Dependent What this means is if you add a dimension in the ordinal view all dependent views will also have the new dimension. This can be extremely useful if you have a large floor plan and you want to make several views which are cropped to specific regions.

How do I filter a schedule by sheet in Revit?

In Revit 2023: You can tick the “Filter by Sheet” box at the bottom of the schedule’s filter menu: For example, if views on a sheet only show doors from a specific level, the schedule will only show those doors.

How do I filter a schedule by level in Revit?

How do you filter linked models in Revit?

1. Using the “tab” key select one of the families from the linked file and look at the properties to see what the name is.
2. Type in “VG” to start the Visibility Graphics dialogue box.
3. Go to the “Filters” tab and choose the “Edit/New” button.

How do I make an editable schedule in Revit?

1. Click View tab Create panel Schedules drop-down Schedule/Quantities.
2. In the New Schedule dialog, select the element category for which you want to schedule keys.
3. Select Schedule Keys.

How do I create a custom schedule in Revit?

How do I group a row in a schedule in Revit?

1. Open a schedule view.
2. In the group header rows, drag the cursor across the headings to group.
3. Click Modify Schedule/Quantities tab Headers panel Group, or right-click the selected headings, and click Group Headers.
4. Enter text in the new row as necessary.

How do you select similar walls in Revit?

1. Place the cursor on or near one wall or line, and click to select it.
2. Press Tab . Revit highlights the second wall or line that is closest to the cursor.
3. Press Tab again to highlight all of the connected walls or lines. Then click to select them.

How does Dynamo select multiple elements?

In Dynamo, you can use the Select Model Element node to select a single model element or the Select Model Elements node to select several model elements. These nodes allow you to quickly select an element or elements manually. These nodes are located in the node Library under Revit > Selection.

How do you select a chain in Revit?

1. Highlight any one of the elements in the chain.
2. Press Tab . All elements in the chain are highlighted.
3. Click to select the entire chain.

What is overkill tool?

The OVERKILL command and SELECTION CYCLE tool can be used together to increase efficiency and compress the size of your drawing. The selection cycle tool can be used in an AutoCAD drawing to locate lines which are overlapping each other.
