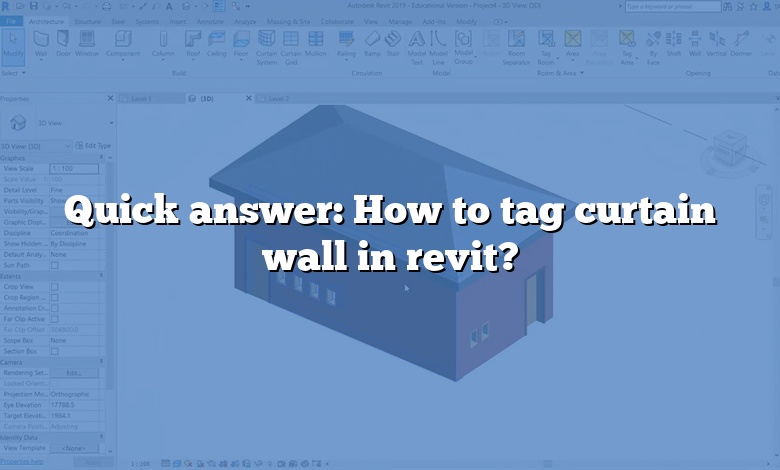

Quick answer: How to tag curtain wall in revit?

Subsequently, how do you label curtain walls?

1. Select the Curtain Wall. 2. Click Document > Annotation > Label Components of Selected Elements to bring up the dialog box.

You asked, how do you make a curtain wall legend in Revit?

Also, how do you join curtains in Revit? In an elevation, select the curtainwall gridline, you’ll have to tab until you see the dashed line, then once selected, there will be a button appear, called Add or Remove Segments. Pick the button, then pick the portion of a grid that you want to join the panels at. Thanks for the suggestion Scott.

Furthermore, how do you edit a curtain wall grid in Revit?

1. In a view, select the grid system.
2. On the Properties palette, click Edit Type.
3. Adjust the values for Layout, Spacing, and other parameters to achieve the desired layout. See Type-Driven Curtain Element Layout Type Properties.

1. Click Architecture tab Build panel (Mullion).
2. Highlight the grid line to which to add the mullions, and click to select it. Tip: Hold Shift to place a mullion only on the selected segment. Or hold Ctrl to place mullions on all open grid segments.

How do you add symbols to Legends in Revit?

1. Click Annotate tab Detail panel Component drop-down (Legend Component).
2. On the Options Bar, for Family, select a model family symbol type.
3. Specify the view direction for the symbol. Some symbols have more options than others.
4. Place the symbol in the view.

What are legends used for in Revit?

Legend views list model components and annotations used in a project.

How do you add a component to a legend in Revit?

How do you connect two curtain panels?

How do you draw a curtain wall corner in Revit?

How do you make a corner mullion in Revit?

In order to specify corner mullions as part of the curtain wall type, you need to change the Border 1 Type and Border 2 Type mullions under Vertical Mullions. Change both to the V Corner Mullion.

How do you modify a curtain wall?

1. Select a curtain grid.
2. Click Modify | Curtain Wall Grids tab Curtain Grid panel Add/Remove Segments.
3. Click on a curtain grid segment to remove it. As you remove segments, adjacent panels join.
4. Click in white space in the drawing area.

How do you add a segment to a curtain wall in Revit?

Select a curtain grid. Click Modify | Curtain Wall Grids tab Curtain Grid panel Add/Remove Segments. Click the dashed segment to restore the curtain grid segment. The dashed lines indicate a segment that was removed previously.

How do you edit a mullion curtain wall?

Where are curtain wall mullions in Revit library?

Look in the Project Browser>Families>Curtain Wall Mullions. There should be Circular Mullion, L Corner Mullion, Quad Corner Mullion, Rectangular Mullion, Trapezoid Corner Mullion, and V Corner Mullion.

How do you create a legend?

1. Click the chart to which you want to add a legend, click the Chart Elements button. , and then click Legend.
2. To change the location of the legend, click the arrow next to Legend and then click the location that you want.

What is a sheet legend?

1. With a chart, a legend is an area of a chart describing each of the parts of the chart. See our chart definition for a visual example of a legend. 2. A legend is an explanation of characters, symbols, or markings on a document that are usually unfamiliar to the reader.

How do you edit a legend component in Revit?

1. Open a legend view.
2. Select a legend component, and on the Properties Palette, specify the view direction, host length (if applicable), detail level, and component type. By default, the legend component acquires its detail level from the project view.

How do I Create a material tag in Revit?

1. Click Annotate tab Tag panel (Material Tag).
2. On the Options Bar: To set the orientation of the tag, select Vertical or Horizontal.
3. Highlight the material to tag within the element, and click to place the tag.

How do you organize Legends in Revit?

How do I make a color fill a legend in Revit?

1. Open a floor plan view or section view.
2. Click Annotate tab Color Fill panel (Legend).
3. Click in the drawing area to place the color fill legend.
4. In the Choose Space Type and Color Scheme dialog, select the space type and color scheme, and click OK.

How do I add a door or legend to a Revit window?

How do you Create a key in Revit?

1. Click View tab Create panel Schedules drop-down Schedule/Quantities.
2. In the New Schedule dialog, select the element category for which you want to schedule keys.
3. Select Schedule keys.
4. Click OK.
5. In the Schedule Properties dialog, add the predefined fields for the style.
6. Click OK.

How do you add a room name in Revit?

Can you put multiple curtain panels together?

Place the curtain panels on top of one another, right sides together. Then pin the vertical edges you unpicked together. If your fabric is quite thick you may opt to clip the two panels together instead. If you’re working with patterned panels check that the pattern matches before and after pinning.
