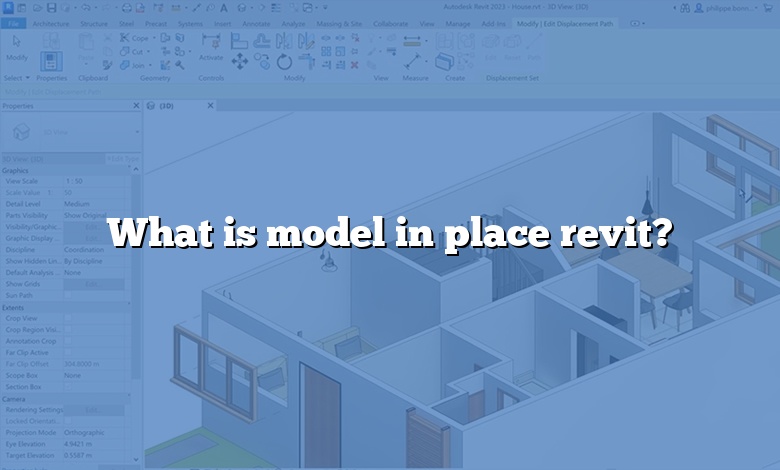

What is model in place revit?

You can choose to Place a Component, which places a standard component, or Model In-Place, which creates a component that is unique to the project. I’ll click Model In-Place. Revit displays the Family Category and Parameters dialog. Here, you can select the family category of the object you are about to create.

Also the question is, what is in place family in Revit? In Place families is a family type that is similar to loadable families, however, there is one major difference. In Place families cannot be created or used as standalone families. However, these families can be developed, edited and placed within a model that the in place family is hosted in.

As many you asked, how do I make a model in place mass in Revit?

1. Click Massing & Site tab Conceptual Mass panel (In-Place Mass).
2. Enter a name for the in-place mass family, and click OK. The application window displays the conceptual design environment.
3. Create the desired shapes using the tools on the Draw panel.
4. When you are finished, click Finish Mass.

Similarly, how do I change my model in place?

Also know, how do you apply material to a model in place? To add a material to an in-place component, select it and choose Modify > Edit In-Place. Select the geometry and adjust the material through its Properties. For more information on in-place components, you may want to take a look at the Families Guide. I hope this information helps!In-Place Families In-place elements are unique elements that you create when you need to create a unique component that is specific to the current project. You can create in-place geometry so that it references other project geometry, resizing or adjusting accordingly if the referenced geometry changes.

What is the difference between component system and in place families?

What massing means?

to come together in large numbers: Thousands of troops have massed along the border in preparation for an invasion. Meeting people. ayup.

What is building massing?

Building massing refers to the overall configuration of the building. The way a building is arranged on its site is particularly important for larger buildings.

What is a massing model?

Massing is a term used in architecture that refers to the perception of the general shape and form as well as the size of a building. The massing model represents those models that focus on the massing of architecture, rather than its structural detail, building material, color, layout, or facade.

What is parametric family in Revit?

If you want a family that can change size or has moving parts, create a parametric family –that is, one that uses parameters to control its behavior. In this case, you need to build a framework using reference planes and reference lines.

How do you edit a place in Revit?

Select the mass, then click ‘Edit In-Place’. Tab to select the extrusion (by default Revit will select the face /edge first but tabbing will allow you to select the solid). Click ‘Edit Profile’. Select the top or bottom surface (tab if necessary).

How do I make models faster in Revit?

1. Tip #1 – Using Internal Notes.
2. Tip #2 – Learn the Keyboard Shortcuts.
3. Tip #3 – Avoid Bad Clicking.
4. Tip #4 – Use Scheduling to Your Advantage.
5. Tip #5 – Use Those Plug-Ins and Apps.
6. Tip #6 – Have the Right Hardware.
7. Tip #7 – Using Temporary View Properties.

How do you change models in place material in Revit?

If you use Structure > Model > Component > Model in Place and then choose a Structural category, such as Structural Foundations, you are able to both set the Material for Model Behavior in the properties pallet as well as set the actual Material in the Family Types editor.

How do you save a model in place as a family?

1. Select the Model In-Place component.
2. Select Edit In-Place.
3. Cross select all geometry of the component.
4. Select Clipboard Copy.
5. Open a new Generic Model family.
6. Clipboard Paste Aligned to Current View.
7. Change the family type to the needed category.
8. Save the Family as with a new name.

How do you assign materials in Revit?

1. Click Modify tab Geometry panel (Paint).
2. In the Material Browser dialog, select a material. Note that you can only browse for a material when you select the paint tool.
3. Place the cursor on the element face to highlight it.
4. Click to apply the paint.

How do I select a model in place in Revit?

1. Open a project.
2. On the ribbon, click (Model In-Place).
3. In the Family Category and Parameters dialog, select a category for the element, and click OK.
4. In the Name dialog, type a name, and click OK.
5. Use the Family Editor tools to create the in-place element.

What is host in Revit?

Host Element — An element that can receive or support or provide structure for other model elements (built in-place construction). Component Element — An item inserted into a project (items that are pre-manufactured, purchased and installed).

How many types of families are there in Revit?

We can classify all Revit families into three different types: System families, loadable families, and in place families. In most cases, system families are typically assemblies of multiple components and layers.

What is the three types of families in Revit?

The 3 kinds of families in Revit are: system families, loadable families, and in-place families. Most elements that you create in your projects are system families or loadable families.

How many types of parameters are there in Revit?

Parameters are used to show and control an element’s information and properties. You can create custom parameters for each category/element in the projects and sort schedules based on the parameter data. Within Revit, there are three types of parameters: project, global and shared.

Why are Revit families so important?

Using predefined, or in-built, families or creating new families in Revit enables the addition of both standard and customised elements to building models. Design changes can be made easily, since families facilitate the control of similar elements.

What is massing model in architecture?

Massing is a term used in architecture that refers to the perception of the general shape and form as well as the size of a building. The massing model represents those models that focus on the massing of architecture, rather than its structural detail, building material, color, layout, or facade.

Why is massing important in architecture?

Massing in architectural theory Massing influences the sense of space which the building encloses, and helps to define both the interior space and the exterior shape of the building.

What is a massing diagram?

Mass Diagram- A graphical representation of the cumulative amount of earthwork moved along the centerline and distances over which the earth and materials are to be transported.

What is fenestration in a building?

Originating from the Latin word fenestra, meaning window, fenestration refers to the openings in a building’s facade. In simple terms, fenestration can be explained as the arrangement of windows, doors and openings in a building.
