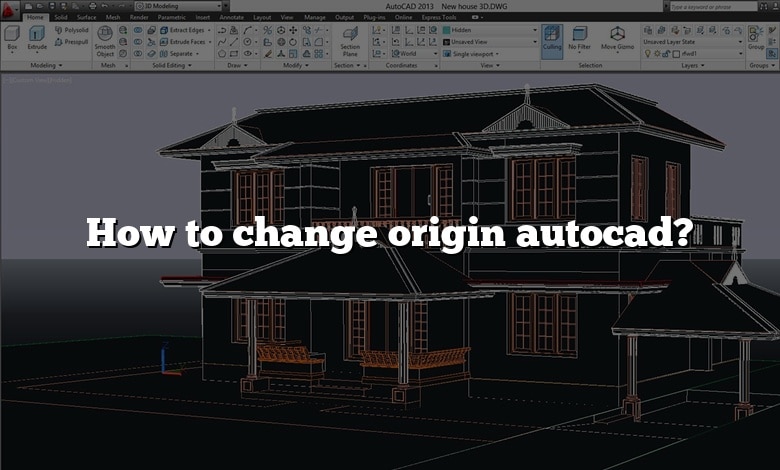

How to change origin autocad?

If your question is How to change origin autocad?, our CAD-Elearning.com site has the answer for you. Thanks to our various and numerous AutoCAD tutorials offered for free, the use of software like AutoCAD becomes easier and more pleasant.
Indeed AutoCAD tutorials are numerous in the site and allow to create coherent designs. All engineers should be able to meet the changing design requirements with the suite of tools. This will help you understand how AutoCAD is constantly modifying its solutions to include new features to have better performance, more efficient processes to the platform.
And here is the answer to your How to change origin autocad? question, read on.

Introduction

To set a UCS from the Ribbon View tab > Coordinates panel, click the 3 Point button. AutoCAD will prompt Specify new origin point click the point you wish to be the 0,0 location for the new UCS. You will see the UCS icon being relocated. You will then be prompted Specify point on positive portion of X-axisX-axisThere are no standard names for the coordinates in the three axes (however, the terms abscissa, ordinate and applicate are sometimes used). The coordinates are often denoted by the letters X, Y, and Z, or x, y, and z. The axes may then be referred to as the X-axis, Y-axis, and Z-axis, respectively.https://en.wikipedia.org › wiki › Cartesian_coordinate_systemCartesian coordinate system – Wikipedia.

Beside above, how do I change origin point in AutoCAD? Click the UCS icon. Click and drag the square origin grip to its new location. The UCS origin (0,0,0) is redefined at the point that you specified. Tip: To place the origin with precision, use object snaps or grid snaps, or enter specific X, Y, Z coordinates.

Moreover, how do I change the origin in AutoCAD 2018?

As many you asked, how do I reset my UCS origin in AutoCAD?

1. Use the UCS command and select World.
2. On the View tab of the Ribbon, go to the Coordinates panel and select World from the drop-down menu.
3. Under the ViewCube expand the coordinate system drop down and select WCS.
4. On the command line in AutoCAD, type PLAN and then World.

You asked, how do I change XY coordinates in AutoCAD?

1. Type in the CHANGE command.
2. Type ALL to select all objects and then Enter.
3. Type P for Properties.
4. Type E for Elevation.
5. Type 0 and then a final Enter to end the command.

What is the origin in AutoCAD?

AutoCAD was derived from a program that began in 1977, and then released in 1979 called Interact CAD, also referred to in early Autodesk documents as MicroCAD, which was written prior to Autodesk’s (then Marinchip Software Partners) formation by Autodesk cofounder Michael Riddle.

How do I change my UCS view in AutoCAD?

To display the Coordinates panel, right-click anywhere on the View tab and choose Show Panels > Coordinates. Click View tab Coordinates panel Z. To rotate the view 90 degrees clockwise, enter 90. To rotate the view 90 degrees counterclockwise, enter -90.

How do I get Coordinates in AutoCAD 2020?

1. Click Home tab Utilities panel ID Point. Find.
2. Click the location that you want to identify. The X,Y,Z coordinate values are displayed at the Command prompt.

How do I change my UCS back to normal?

“At the command line, type “UCS” then choose the “World” option. Next type “Plan” and choose “World”. Yes, I’ve tried that. The UCS resets itself to the World position where I’d like it to remain, then on changing views reverts to the other position.

How do I change the Z axis in AutoCAD?

1. Right-click the UCS icon, and click Z Axis.
2. Specify a point for the new origin (0,0,0).
3. Specify a point that lies on the positive Z axis.

How do I turn off z coordinates in AutoCAD?

You can open each xref, use . CHANGE, select all the objects, Properties, and change the Z value to 0.

What is the use of X Y Z in AutoCAD?

Values which we used to create this point are shown against the labels – Position X, Position Y, Position Z. The procedure was repeated to show the program flow and its available in the AutoCAD command history. That means POINT X Coordinate,Y Coordinate,Z Coordinate will create a Point at X,Y with a height of Z.

What is the origin of a drawing?

It is believed that drawing was used as a specialised form of communication before the invention of the written language, demonstrated by the production of cave and rock paintings around 30,000 years ago (Art of the Upper Paleolithic). These drawings, known as pictograms, depicted objects and abstract concepts.

How do I make origin snap in AutoCAD?

Hit F9 to toggle snap off and see if anything changes. If so, use the snap command to set the snap interval to the grid dimensions you want.

How do you change 3d UCS to 2d UCS in AutoCAD?

What is the difference between WCS and UCS in AutoCAD?

The WCS should always be used to reference geometry to ensure everything aligns to the centre of a file in real-world location. The UCS can be used to orientate the screen to a site. Drawing files will usually have the WCS set by default.

How do you set up UCS?

To define your UCS manually, just click two points to define the orientation of the X axis. To set your UCS based on the the angle of an object in your drawing, such as a polyline, click that object. As you move the cursor up or down, you’ll see a line extending 90 degrees from the object you selected.

How do I get latitude and longitude in AutoCAD?

1. Right-click the coordinate display located on the left end of the status bar ( Find).
2. Select Geographic. Note: This option is available only if the drawing file contains geographical location data.

How do I get easting and northing Coordinates in AutoCAD?

1. Select the “Home” tab and choose the “Draw” panel. Video of the Day.
2. Choose the “Line” drop down option. Click “Create Line By Northing/Easting.” The button is marked with a line and a grid icon.
3. Enter the “northing” value. Press “Enter” then type the the “easting” value.

How do I turn off Dynamic UCS in AutoCAD 2017?

To toggle on and off the Dynamic UCS, use the F6 key. Alternatively, type UCSDETECT into the command line and then enter 0 (not-active) or 1 (active).

Conclusion:

Everything you needed to know about How to change origin autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.
