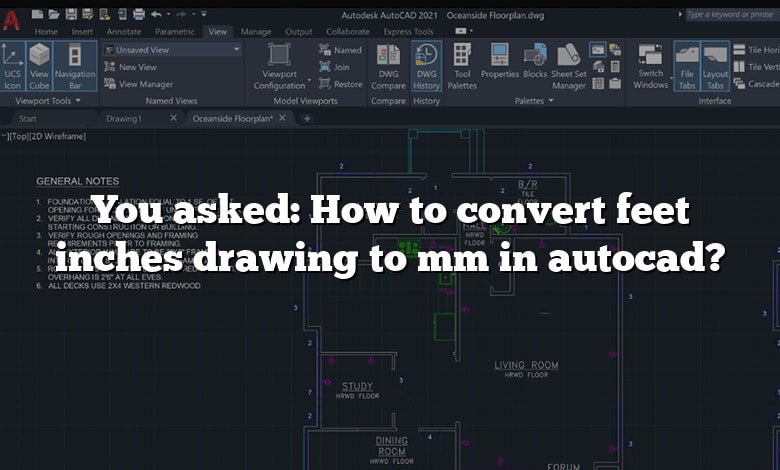

Starting with this article which is the answer to your question You asked: How to convert feet inches drawing to mm in autocad?.CAD-Elearning.com has what you want as free AutoCAD tutorials, yes, you can learn AutoCAD software faster and more efficiently here.
Millions of engineers and designers in tens of thousands of companies use AutoCAD. It is one of the most widely used design and engineering programs and is used by many different professions and companies around the world because of its wide range of features and excellent functionality.
And here is the answer to your You asked: How to convert feet inches drawing to mm in autocad? question, read on.
Introduction
Amazingly, how do I convert inches to mm in AutoCAD?
- In the command line enter DIMSTYLE.
- In the Dimension Style Manager, click New.
- In the New Dimension Style dialog box, select a Name, Start With Style, and select Use For: All Dimensions.
- On the Primary Units tab, enter m in the Suffix.
- Choose Decimal in the “units format”
- Click OK.
- Close.
As many you asked, how do you scale from feet to MM in AutoCAD?
- Start a new drawing using the acad.
- Enter the UNITS command.
- Select “Decimal” for Type and “Feet” for Insertion scale.
- Enter the INSERT command (or CLASSICINSERT in AutoCAD 2020 and newer).
- Click the Browse button and select the inch-based drawing.
Likewise, how do I change the units of an existing drawing in AutoCAD?
- Click Utilities Drawing Setup.
- Click the Units tab.
- Under Drawing Units, select the desired units.
- To scale objects that you insert into the current drawing from drawings with different drawing units, select Scale Objects Inserted from Other Drawings.
You asked, how do you change to metric in AutoCAD?
- create a new drawing.
- Enter the command UNITS.
- Select the units you need.
- Enter the code INSERT or CLASSICINSERT (AutoCAD 2020)
- In “Examine” look for your previous drawing and set, by cancelling the corresponding options, that the drawing is inserted without scale or rotation in 0.0.
Since there are 25.4 millimeters in one inch, the length in inches is equal to millimeters divided by 25.4. Thus, the formula to convert millimeters to inches is the length divided by 25.4.
How do you change feet to inches in AutoCAD?
How do I change units in feet and inches in AutoCAD?
- Start a new drawing using the acad.
- Enter the UNITS command.
- Select “Decimal” for Type and “Feet” for Insertion scale.
- Enter the INSERT command (or CLASSICINSERT in AutoCAD 2020 and newer).
- Click the Browse button and select the inch-based drawing.
How do you measure feet in MM?
To convert a foot measurement to a millimeter measurement, multiply the length by the conversion ratio. The length in millimeters is equal to the feet multiplied by 304.8.
How do you convert feet into centimeters?
To convert feet to cm, multiply the given feet value by 30.48 cm. For example 3 ft = 3 x 30.48, we get 91.44 cm.
What is the exact conversion from inches to mm?
1 inch is equal to 25.4 millimeters, which is the conversion factor from inches to millimeters.
What is 1 inch equal to in mm?
1 inch = 25.4 millimeters.
How do you convert feet to inches when drawing?
Which is bigger mm or ft?
A foot is greater than a millimeter.
What is the formula to convert mm to square feet?
We can understand it with an example if we want to convert 10 square millimeters to square feet: Square feet = Square millimeter X 0.000010763910417. 10 square millimeter X 0.000010763910417 = 0.000107639104170 square feet.
How do you write feet and inches?
There are two popular ways of writing feet: the abbreviation “ft.” or the single apostrophe (′). Inches can be represented using “in.” or with a double apostrophe (″). As an example, five feet, ten inches could be written as 5 ft. 10 in or 5′10″.
What is 10 ft by 10 ft in meters?
10 ft multiplying by 10 ft equal to 100 sq ft. Therefore, 100 sq ft divide by 10.7639 sq ft is equal to 9.29 sq mt approximately.
How do you convert inches to centimeters?
Inches to Centimeter Formula The value of 1 inch is approximately equal to 2.54 centimeters. To convert inches to the centimeter values, multiply the given inch value by 2.54 cm.
What is the formula for inches to centimeters?
To convert inches to cm, you must multiply the unit by 2.54. So, for example, if you want to 1 inch to cm, you need to multiply 1 with 2.54.
Is 20mm same as 1 inch?
20mm = 25/32 inch. 21mm = just over 13/16 inch. 22mm = almost 7/8 inch.
How do I convert inches to mm in Excel?
- Convert inch to foot =CONVERT(A2,”in”,”ft”)
- Convert inch to cm =CONVERT(A2,”in”,”cm”)
- Convert inch to mm =CONVERT(A2,”in”,”mm”)
- After installing Kutools for Excel, please do as below:（Free Download Kutools for Excel Now!)
Final Words:
I believe I have covered everything there is to know about You asked: How to convert feet inches drawing to mm in autocad? in this article. Please take the time to look through our CAD-Elearning.com site’s AutoCAD tutorials section if you have any additional queries about AutoCAD software. In any other case, don’t be hesitant to let me know in the comments section below or at the contact page.
